A warehouse concrete floor that is too thin can crack under heavy forklift traffic within just a few years. Most general storage warehouses use slabs between 6 and 8 inches thick, though the required thickness depends on load demands and soil conditions.
Point loads from rack legs and constant wheel traffic create stress that a standard 4 inch residential slab cannot withstand. Proper reinforcement and a compacted base are just as important as slab thickness in preventing failure.
Regional soil conditions and freeze-thaw cycles also affect slab design. A 6 inch slab may work for light duty storage, while warehouses using narrow aisle trucks or very heavy loads may require slabs 9 inches thick or more. Let’s look at what Is the ideal warehouse concrete floor thickness.
Why Thickness Matters for a Warehouse Floor
A thin slab transfers load directly to the soil below. That soil then compresses unevenly and creates cracks at the surface.
Heavy point loads from forklift wheels exceed what a four or five inch section can distribute. The concrete then fails from the bottom up through flexural stress.
Load Transfer and Structural Failure
Concrete resists compression well but handles tension poorly. A thick slab keeps tensile forces low by spreading the wheel load over a wider area.
Thin sections bend slightly under each pass of loaded equipment. Each bend adds microscopic cracks until a full fracture appears.
The Cost of Ignoring Thickness
Floor repairs in an active warehouse shut down rack rows and block traffic flow. Downtime for cutting out and repouring a failed section often exceeds the original install cost.
- Cracked joints require replacement every twelve to eighteen months
- Spalled surfaces damage forklift tires and slow travel speeds
How Thickness Affects Joint Performance
Load transfer across saw cut joints relies on aggregate interlock and subgrade support. A thick slab maintains tighter joint alignment under repeated axle loads.
Thin slabs curl more at the edges after curing. Curled joints then lose their load transfer capacity and cause corner breaks.
What Most Warehouses Start With
Most distribution centers begin at six inches of reinforced concrete. This thickness handles a standard 8000 pound forklift with a 4000 pound load on stable soil.
A six inch slab provides enough mass to resist curl at the joints. It also leaves room for rebar or fiber reinforcement without crowding the section.
Why Six Inches Became the Baseline
Engineers settled on six inches decades ago after observing failure patterns in thinner floors. Four inch slabs cracked too quickly under industrial wheel loads while eight inches added cost without benefit for light duty work.
- Six inches works for lift truck axle weights up to 12000 pounds
- The thickness supports rack post loads of roughly 6000 pounds per leg
When Six Inches Falls Short
Wet or poorly compacted soil reduces the support a six inch slab needs to perform. The floor then sees deflections that exceed the concrete’s strain limit regardless of its thickness.
Point loads from very narrow aisle trucks or cantilever racks require more than six inches. So does any warehouse with daily traffic from loaded twelve thousand pound forklifts.
The Four Inch Boundary
A four inch slab belongs in light commercial settings like loading docks and cross docks, not main warehouse floors. Its bending strength gets overwhelmed by a single pass of a loaded sit down forklift.
Four inches can work for hand stack areas or very light storage zones. But those zones almost never stay light after five years of operation.

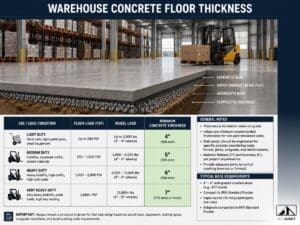

Three Things That Change the Number You Need
The six inch rule shifts when you change any of three core variables. Those variables are the wheel load weight, the traffic frequency per day, and the soil strength beneath the slab.
Each variable adds inches independently or in combination with the others. A warehouse with two difficult variables may need nine inches even if the third variable looks easy.
Wheel Load Weight
A single forklift axle with a ten ton load pushes stress deep into the concrete section. That stress requires extra thickness to spread the force before it hits the soil.
Lighter equipment like pallet jacks or walkie riders produce almost no point load risk. The difference between a four ton axle and a ten ton axle changes thickness requirements by three full inches.
Traffic Frequency
One heavy forklift pass per day leaves time for the concrete to rest and rebound. Five hundred passes per day cause fatigue failure much like bending a paper clip back and forth.
- Ten passes per day adds roughly a half inch to required thickness
- One thousand passes per day can double the needed slab depth
Soil Strength and Composition
Soft clay or silty soil compresses more than granular sand or crushed stone. That extra compression forces the concrete to span across soft pockets like a bridge without support.
A plate load test on your native soil reveals its bearing capacity in pounds per square foot. Weak soil below two thousand PSF requires either a thicker slab or a deeper gravel base to compensate.
A Deeper Look at Different Warehouse Zones
Not every square foot of a warehouse floor needs the same thickness. The zones with the most stress demand more concrete while low traffic areas can use less.
Mixing thicknesses across zones complicates the pour but saves material cost. A tapered transition joint connects thicker and thinner sections without creating a trip hazard.
Dock Areas
Forklifts brake hard and accelerate fast when they enter and exit dock doors. That repeated action creates wear patterns and stress concentrations directly in the loading zone.
Trailer lifts at the dock drop pallets from tailgate height onto the floor. The impact from a 2 foot drop multiplies the effective weight of the load by a factor of 4.
- The first 10 feet inside each dock door needs 1 to 2 extra inches
- The area beneath a leveler also sees point loads from the leveler lip
High Traffic Drive Lanes
Main aisles that connect receiving to storage see more forklift passes in 1 week than side aisles see in 1 year. Those lanes develop fatigue cracks long before the storage zones fail.
Wheel paths become visible as polished grooves in the concrete surface. A deeper slab in those lanes prevents the subsurface cracking that follows surface wear.
Storage Row Floors
Floors under racks experience almost no wheel traffic except during putaway and retrieval. The stress comes mainly from the static rack load plus an occasional forklift stop.
These zones can often match the baseline thickness even when drive lanes increase by 2 inches. But the rack post footprint still requires reinforcement even at baseline depth.
Column Base and Mezzanine Areas
Building columns transfer roof and mezzanine loads straight through the floor and into the soil below. A thin slab under a column cracks in a circular pattern around the steel base.
Mezzanine stair landings and lift platforms concentrate foot and wheel traffic at 1 fixed location. That location needs a localized thickened slab or a separate footing poured independently from the floor.

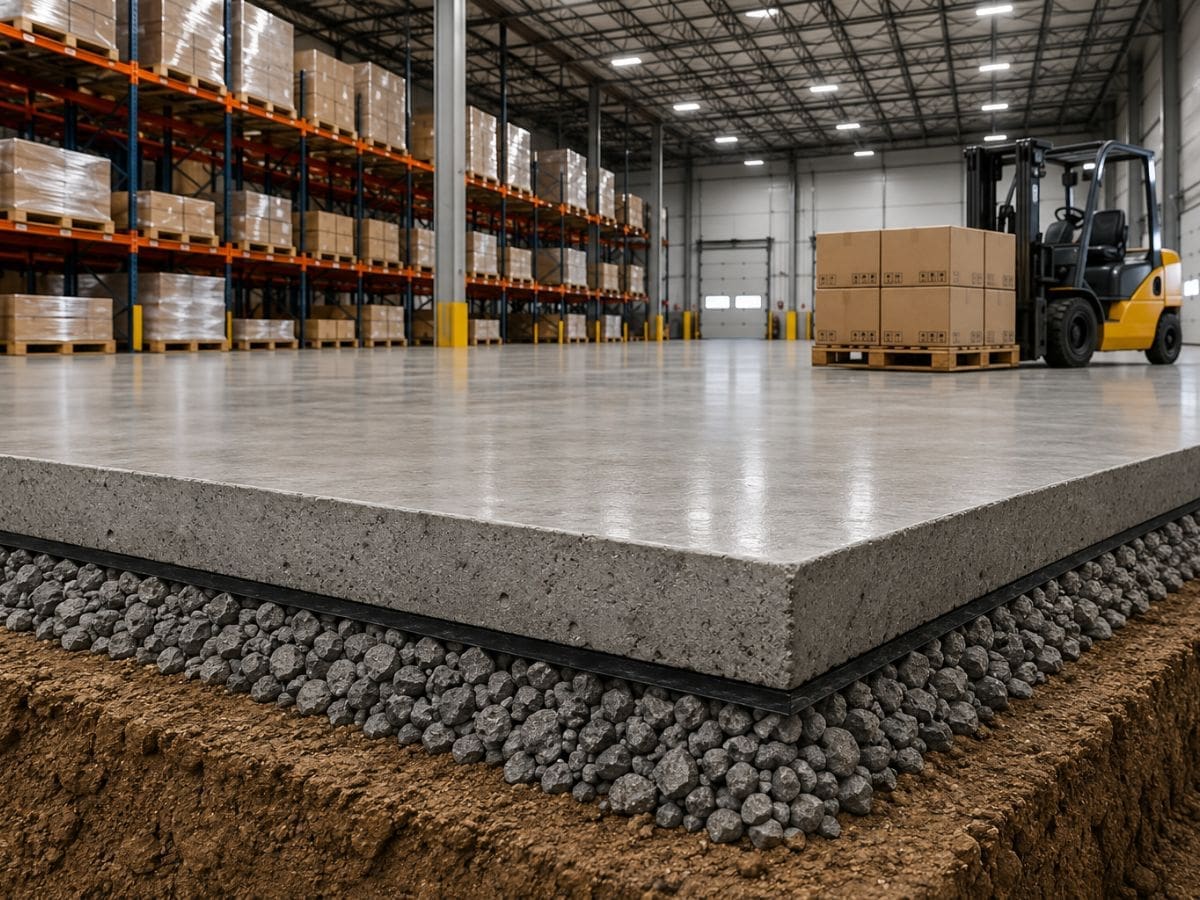

Don’t Forget What Goes Under the Concrete
The ground beneath a warehouse floor supports everything above it. A 6 inch slab on poor soil performs worse than a 4 inch slab on compacted gravel.
Concrete acts as a wearing surface and a load spreader. But the subgrade does the real work of carrying the final load.
The Subgrade and Compaction
Native soil must be proof rolled and tested before any stone or concrete goes down. Soft spots found during rolling require removal and replacement with granular fill.
Compacted soil achieves a density of at least 95 percent of its maximum potential. Lower densities allow settlement under load, which leaves the concrete unsupported from below.
- A 1 inch settlement under a rack post cracks the slab within months
- Proctor tests confirm whether the soil meets the required density
The Gravel Base Layer
Clean crushed stone spreads the wheel load across a wider area of soil. 6 inches of gravel can reduce the required concrete thickness by 2 full inches.
Gravel also separates the concrete from capillary water in the soil. That separation prevents pumping where water pushes fine soil particles up through joints.
Vapor Barriers and Reinforcement
A vapor barrier below the slab keeps moisture from migrating up through the concrete. That moisture would otherwise weaken the bond between concrete and any reinforcing steel placed inside.
Rebar or fiber reinforcement does not replace thickness. It only holds cracks tight after they form, which prevents step cracks and differential settlement.
Signs Your Current Floor Is Too Thin
A floor that lacks adequate thickness announces the problem through visible failures. These signs appear first in the highest stress zones like drive lanes and rack bases.
Early detection allows targeted repairs before the damage spreads across large sections. Ignoring the signs forces a full slab replacement later.
Cracks That Keep Returning
Patched cracks that open again within 6 months indicate a flexural failure from insufficient thickness. The patch material bonds to the surface but the slab beneath continues to bend with each load.
Linear cracks that run joint to joint suggest the slab deflects too much under wheel loads. Thicker sections would resist that deflection and keep the patch intact.
- Transverse cracks spaced every 10 to 15 feet point to a thickness problem
- Longitudinal cracks down the center of drive lanes signal the same issue
Visible Settlement Near Rack Legs
Rack legs that appear lower than the surrounding floor surface show that the slab has settled. The soil beneath compressed because the concrete thickness could not spread the load far enough.
A gap between the floor and the rack base plate confirms settlement. That gap also changes the load angle and adds bending stress at the leg edge.
Spalling in Wheel Paths
Small chips and craters along forklift routes come from surface fatigue. Thin slabs flex more with each pass, which breaks the bond between the paste and the aggregate.
Spalling starts as hairline cracks that widen and intersect over time. The surface then breaks loose in small flakes that spread across the entire wheel path.
When to Call for a Thicker Slab
Certain conditions make a standard 6 inch slab a poor choice from the start. Recognizing those conditions before the pour saves tens of thousands in future repairs.
A thicker slab costs more in materials but less than a full replacement 5 years later. The decision happens once at the planning stage.
New Construction with Heavy Expected Traffic
A new warehouse designed for very narrow aisle trucks needs 9 inches of concrete. Those trucks carry 60000 pound loads on steel wheels that concentrate force into a tiny contact patch.
Automated guided vehicles also demand extra thickness. Their fixed paths concentrate every pass into the exact same 2 inch wide strip of concrete.
- Planned daily forklift counts above 500 passes justify an extra inch
- Steel wheel equipment doubles the stress compared to rubber tires
Retrofitting a Floor for Higher Capacity Equipment
Adding taller racks or heavier forklifts to an existing building requires an evaluation of the current slab. A floor poured for 4000 pound loads will crack under 8000 pound loads.
The retrofit option often involves pouring a new 2 to 3 inch bonded overlay. But that overlay only works if the existing slab remains structurally sound and well attached.
Cold Storage or Freezer Warehouses
Frozen concrete shrinks more than concrete at room temperature. That shrinkage increases joint width and reduces load transfer across the joint edge.
Temperature swings from frequent door openings create thermal stress cycles. A thicker slab provides more mass to absorb those cycles without cracking through the full depth.
Conclusion
6 inches serves as the baseline for most general storage warehouses with stable soil and moderate traffic. Add 1 to 2 inches for high frequency drive lanes, dock zones, or very narrow aisle trucks.
A thick slab on poor soil performs worse than a thinner slab on compacted gravel. The subgrade preparation matters as much as the concrete depth.
Measure your actual wheel loads and traffic counts before setting a thickness number. One careful decision at the planning stage prevents a decade of floor failures.
