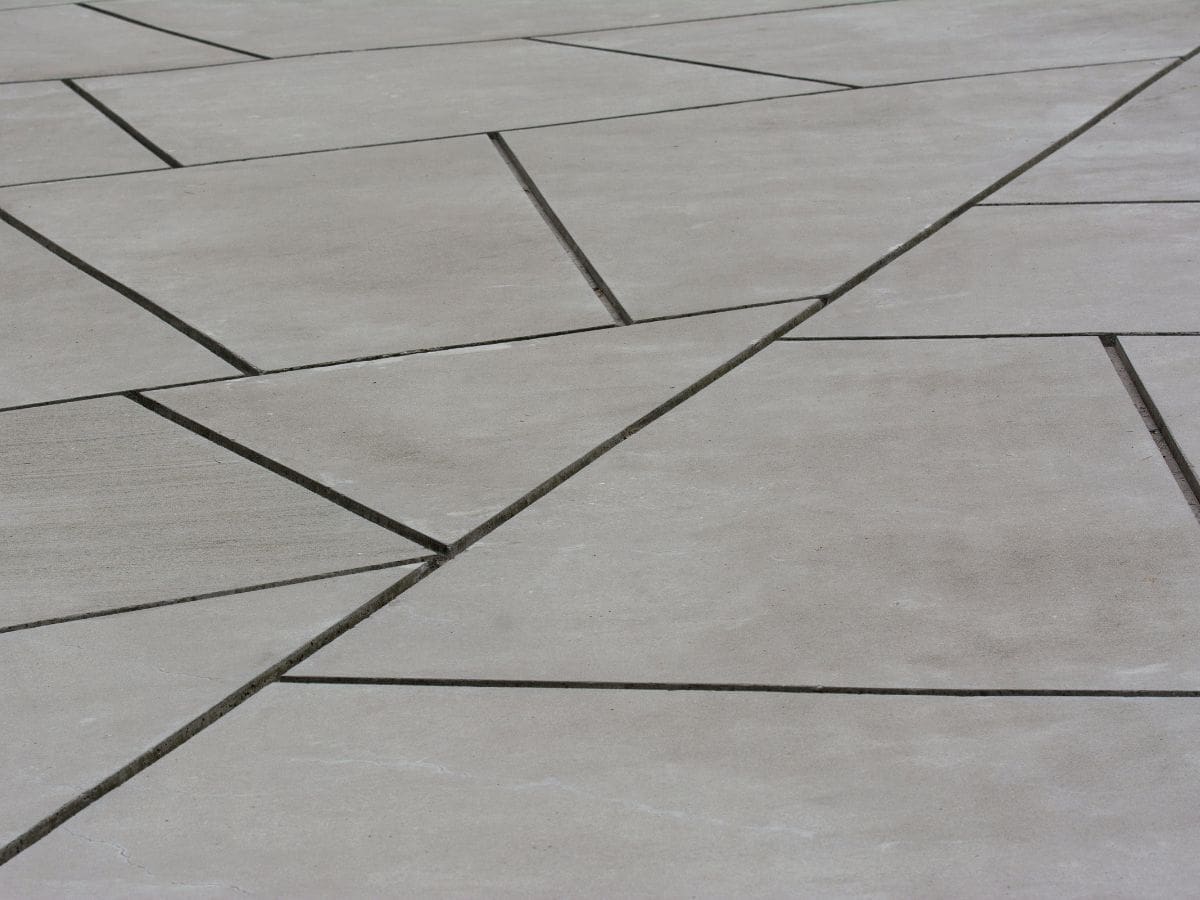

A jointed concrete slab is a concrete surface that features planned joints or gaps intended to control the location of cracks and to accommodate natural movements caused by shrinkage, temperature changes, or loading. These joints are a crucial element of most slab-on-grade installations, helping to maintain the slab’s structural integrity and appearance over time.
In this article, we will examine what is a joint concrete slabs , including their the key aspects benefits, the various types of joints employed, and important design factors and considerations. We will also highlight common mistakes to avoid when incorporating joints into a concrete slab, ensuring a more durable and long-lasting finished structure.
Understanding Jointed Concrete Slabs: Purpose and Function
A jointed concrete slab is simply a concrete surface featuring strategically placed joints or gaps. These engineered breaks are vital for controlling the concrete’s natural cracking from shrinkage and temperature changes. By creating weakened planes, joints guide cracks to form in neat, controlled lines instead of random, unsightly fissures.
These carefully positioned joints are fundamental to the slab’s long-term performance and durability. They allow essential movement, preventing stress buildup and damage. Essentially, well-designed joints are a critical component in almost all concrete slab construction, making the rigid material more resilient and manageable.
Types of Joints in Concrete Slabs
Concrete slabs are subject to various stresses that can cause cracking or movement. To manage these effects and maintain structural integrity, different types of joints are used, each serving a specific purpose in slab performance.
| Type of Joint | Purpose | Key Characteristics | Common Applications |
| Control Joints(Contraction Joints) | Direct the location of cracks caused by shrinkage during curing | – Placed in regular patterns- Formed by saw cutting, tooling, or joint strips | Sidewalks, driveways, slabs-on-grade in residential and commercial settings |
| Expansion Joints(Isolation Joints) | Allow slab expansion/contraction due to temperature changes | – Positioned between slab and fixed elements- Filled with compressible material to absorb movement | Between concrete slabs and walls, columns, curbs, or other structures |
| Construction Joints | Used where concrete placement is interrupted or staged | – May serve as control joints- Often include keyways or dowels for alignment and load transfer | Large pours done over multiple days; warehouse floors, parking decks |
| Doweled Joints | Transfer loads across adjacent slab panels while allowing horizontal movement | – Reinforced with steel dowels- Used where heavy loads are expected | Industrial floors, highways, airport pavements |
Understanding the different types of joints in concrete slabs is essential for selecting the right solution based on the structure’s function and environmental conditions. Proper joint selection improves durability, minimizes cracking, and supports long-term performance.
Why Are Joints Necessary in Concrete Slabs?
Joints are a crucial part of concrete slab construction because they help manage the material’s natural tendencies to shrink, expand, and crack. Without these planned separations, concrete slabs are more likely to develop random, uncontrolled cracks that can affect both appearance and structural performance.
1. Control Cracking
As concrete dries and cures, it shrinks slightly, which can lead to internal stress and cracking. Control joints allow these cracks to form in a planned, straight line rather than randomly across the slab.
2. Allow Movement
Temperature changes and moisture fluctuations cause concrete to expand and contract. Joints give the slab space to move without putting stress on the entire structure or adjacent elements.
3. Reduce Internal Stress
By dividing large concrete areas into smaller sections, joints reduce the stress that builds up as the slab cures and interacts with environmental factors. This makes the slab more stable and less prone to damage.
4. Facilitate Construction
Joints make it easier to pour concrete in phases, especially on large-scale projects. They help maintain alignment and quality when multiple pours are required.
Joints are essential for guiding cracking, allowing movement, and ensuring long-term durability. Proper joint design and placement greatly improve the performance and lifespan of concrete slabs.
Factors Influencing Joint Design and Performance
Designing effective joints in a concrete slab involves considering several key factors that influence their performance over time. These factors ensure that the joints function correctly to manage movement, control cracking, and support the slab’s structural needs.

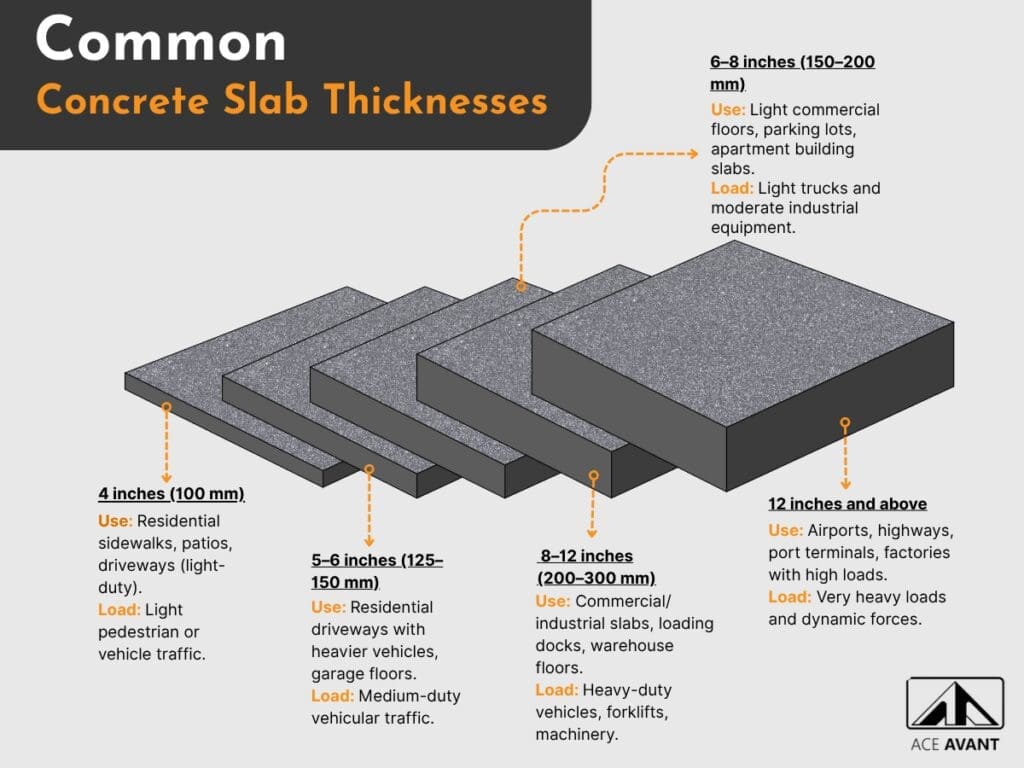

1. Slab Thickness
The thickness of the concrete slab directly impacts joint spacing. Thicker slabs can generally have joints placed farther apart, while thinner slabs require closer spacing to prevent random cracking.
2. Load Requirements
Concrete slabs subjected to heavy loads, such as in industrial floors or pavements, need joints that can transfer loads effectively. This often involves using dowels or reinforcing elements to ensure structural continuity across the joints.
3. Environmental Conditions
Temperature changes, humidity, and exposure to freeze-thaw cycles affect how a slab expands and contracts. Joints must be designed to handle these movements without leading to damage or excessive stress.
4. Subgrade and Base Conditions
The stability and preparation of the subgrade or base beneath the slab play a crucial role in joint performance. A well-compacted, uniform base helps distribute loads evenly and reduces the risk of joint failure.
5. Joint Sealing and Maintenance
Proper sealing helps prevent water, debris, and chemicals from entering the joints, which can lead to deterioration over time. Routine inspection and maintenance ensure joints remain functional and extend the slab’s lifespan.
In conclusion, joint design must account for multiple interrelated factors to ensure long-term effectiveness. By carefully evaluating these influences, engineers and contractors can create durable, low-maintenance concrete slabs.
Design Considerations for Jointed Concrete Slabs
Designing jointed concrete slabs requires careful planning to ensure the slab performs well under expected loads and environmental conditions. Several considerations must be addressed during the design phase to enhance durability, control cracking, and support long-term functionality.
1. Joint Spacing and Placement
Joint spacing should be based on slab thickness, typically no more than 24 to 30 times the slab’s depth in inches. Proper placement ensures cracks form at the joints rather than randomly across the slab surface.
2. Joint Depth
Control joints should be cut to a depth of at least one-quarter of the slab thickness. This ensures that the joint effectively weakens the slab along that line, encouraging controlled cracking.
3. Load Transfer Needs
For slabs subjected to heavy traffic or loads, load transfer mechanisms like dowels may be needed. These components help distribute loads across joints, preventing vertical displacement or uneven settlement.
4. Subgrade and Base Preparation
A stable and uniformly compacted subgrade reduces slab movement and differential settling. Proper base preparation also ensures consistent support, minimizing stress on the joints.
5. Climate and Environmental Conditions
In areas with wide temperature variations or freeze-thaw cycles, joints must be designed to accommodate expansion and contraction. Using the right joint materials and placement techniques helps prevent damage in such environments.
Effective joint design depends on a combination of structural, environmental, and construction-related factors. Addressing these considerations ensures a well-performing, long-lasting concrete slab.
Typical Applications of Jointed Concrete Slabs
Jointed concrete slabs are widely used across various construction sectors due to their ability to control cracking and accommodate movement. Their adaptability and strength make them suitable for both light-duty and heavy-duty applications.
1. Residential Applications
In homes, jointed concrete slabs are commonly used for driveways, patios, garage floors, and basement slabs. These joints help manage cracking caused by shrinkage and seasonal temperature changes, improving durability and appearance.
2. Commercial Spaces
Retail centers, office buildings, and parking lots often use jointed slabs to handle moderate foot and vehicle traffic. Proper joint placement ensures a smooth surface and minimizes maintenance over time.
3. Industrial Facilities
Warehouses, factories, and loading docks require jointed concrete slabs designed for heavy equipment and constant use. Doweled and reinforced joints are often used here to support large loads and prevent structural wear.
4. Infrastructure Projects
Roadways, airport runways, and sidewalks use jointed slabs to accommodate environmental movement and traffic loads. These applications rely on precise joint placement to ensure long-term performance and safety.
All in all, jointed concrete slabs are essential in a wide range of construction settings, each with specific performance demands. Proper joint design tailored to the intended use ensures functionality, longevity, and reduced maintenance.
Jointed vs. Jointless Concrete Floors
When designing concrete floors, builders typically choose between jointed slabs and jointless slabs. Each has its own benefits and limitations depending on the structural demands, project size, and end-use environment. Understanding the differences can help determine the best approach for your specific needs.
| Aspect | Jointed Concrete Floors | Jointless Concrete Floors |
| Definition | Concrete slabs with planned joints (control, expansion, construction) to manage cracking | Large concrete slabs designed without joints, relying on reinforcement and shrinkage control |
| Crack Control | Cracks are controlled via saw-cut joints or tooling | Cracks are minimized through steel fibers, shrinkage-reducing admixtures, and thick slabs |
| Maintenance | Joints require sealing and regular upkeep to prevent damage | Fewer maintenance needs—no joints to seal or repair |
| Load Transfer | Often requires dowels or keyways for load transfer between sections | Load is distributed uniformly through slab continuity and reinforcement |
| Surface Finish | Joints can cause uneven surfaces over time due to joint movement | Smoother, uninterrupted surface—ideal for high-traffic or wheeled operations |
| Installation Complexity | Standard and well-known techniques | Requires precise design, high-quality materials, and experienced installers |
| Best Used For | Driveways, sidewalks, residential slabs, smaller commercial spaces, dry warehouses, and distribution centers. | Cold storage warehouses, food manufacturing facilities, distribution centers, factories, high-bay logistics areas |
In summary, jointless concrete floors are ideal for large industrial settings that demand smooth, low-maintenance surfaces, while jointed slabs offer a more practical and cost-effective solution for smaller residential or commercial projects, and dry warehouse/ distribution center settings where joint maintenance is acceptable. Choosing the right approach depends on the project’s scale, performance requirements, and long-term maintenance goals.
Common Mistakes and How to Avoid Them
Proper joint design and installation are critical to the success of a concrete slab, but several common mistakes can compromise its performance. Understanding these errors and how to avoid them helps ensure a durable, crack-resistant slab.
1. Incorrect Joint Spacing
Placing joints too far apart can lead to uncontrolled and unsightly cracking. Always follow industry guidelines based on slab thickness, typically spacing joints no more than 24 to 30 times the slab’s depth in inches.
2. Delayed Saw Cutting
Waiting too long to saw cut control joints allows shrinkage cracks to form randomly. Saw cuts should generally be made within 6 to 18 hours after finishing the slab, depending on weather and concrete mix.
3. Inadequate Joint Depth
If control joints are not deep enough—less than one-quarter of the slab thickness—they may not effectively control cracking. Ensure joints are cut or formed to the appropriate depth during installation.
4. Improper or Missing Load Transfer Devices
In slabs that bear heavy loads, failing to install dowels or other load transfer mechanisms can result in joint faulting or uneven surfaces. Use properly sized and aligned dowels where needed to maintain slab alignment and support.
5. Poor Joint Sealing
Leaving joints unsealed or using low-quality sealants allows water, debris, and chemicals to penetrate, leading to deterioration. Choose high-quality, semi-rigid sealants suitable for the slab’s environment and traffic conditions.
Avoiding these common mistakes through careful planning and execution significantly enhances the lifespan and performance of a jointed concrete slab. Attention to detail during design and installation helps prevent costly repairs and structural failures down the line.
Final Thoughts: Joint Concrete Slab
Joint concrete slabs are designed with intentional joints to control cracking and accommodate movement caused by shrinkage and environmental changes. These joints—such as control, expansion, and construction joints—help maintain durability and structural integrity in various applications, from homes to industrial and infrastructure projects.
Proper joint design considers factors like slab thickness, load, climate, and placement. Avoiding common mistakes, such as improper spacing or sealing, ensures long-term performance. Overall, jointed concrete slabs provide a reliable solution for strong, lasting concrete surfaces.
