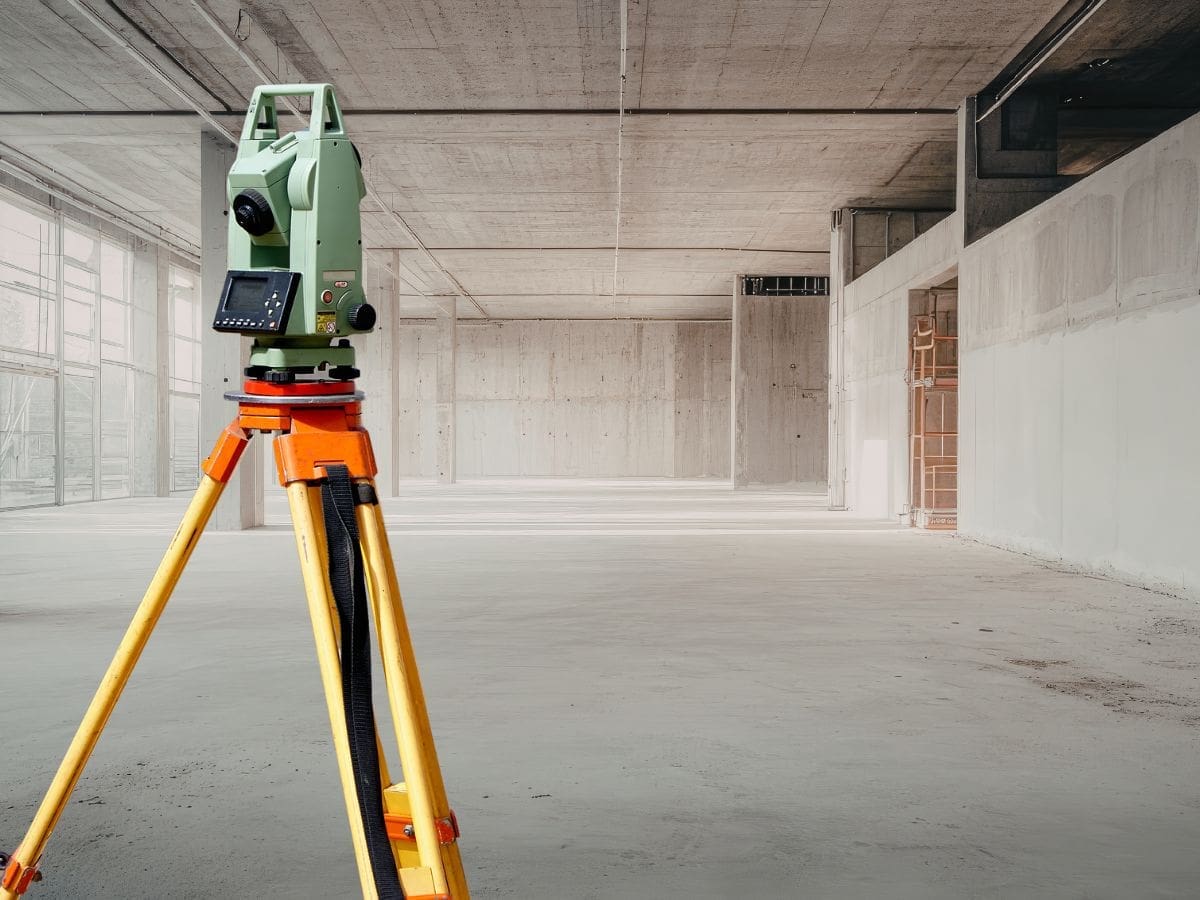

A floor-level survey is a precise assessment that measures and documents how flat and level a concrete surface is, ensuring it meets performance standards for industrial and commercial facilities.
In large-scale construction, floor flatness and levelness are critical for supporting heavy equipment, automation, and constant traffic, while even minor deviations can impact safety, operational efficiency, and long-term durability. These surveys use standardized testing methods and advanced equipment to provide accurate data during new construction, renovations, or routine facility evaluations.
This guide explains what a floor level survey involves, why it is important, how it is conducted, the industry standards that define acceptable tolerances, and the benefits it brings to commercial and industrial operations.
Why Floor Level Surveys Matter
A floor-level survey provides insights that go far beyond visual inspection. While a floor might appear level to the naked eye, precision measurements often reveal deviations that can significantly impact performance.
1. Operational Efficiency
Uneven floors introduce vibration and instability for material handling equipment such as forklifts, pallet jacks, and automated guided vehicles (AGVs). These inefficiencies slow down operations, create more wear and tear on machinery, and lead to higher energy use. A survey ensures floors meet tolerances that allow for smooth, uninterrupted movement across the facility.
Example: A distribution center with properly leveled floors can reduce forklift maintenance costs by minimizing vibration-related damage to tires, hydraulics, and steering components.
2. Equipment Compatibility
Modern warehouses increasingly rely on automation, such as Automated Storage and Retrieval Systems (ASRS), robotics, and conveyors. These systems demand strict tolerances in floor flatness and levelness. A floor survey verifies compliance, preventing costly misalignments and downtime.
3. Worker Safety
Floor irregularities increase the risk of accidents. Carts may veer off course, forklifts can tilt when carrying heavy loads, and employees are more likely to trip on uneven surfaces. A floor level survey helps identify hazards and ensures a safer working environment.
4. Longevity of the Slab
Stress concentrations occur where floors are uneven. Over time, these stress points cause cracking, spalling, or premature joint failure. Surveys ensure weight distribution is uniform, protecting the structural integrity of the slab and extending its lifespan.
5. Compliance and Liability
Some industries, such as food processing or pharmaceuticals, must meet strict standards for floor performance. Regular surveys demonstrate compliance with project specifications, regulatory requirements, and safety codes, reducing liability for owners and contractors.
How a Floor Level Survey Is Conducted
Floor level surveys combine traditional practices with advanced technologies to deliver precise measurements. The process typically involves several steps:
Step 1: Preliminary Visual Inspection
Before instruments are set up, surveyors walk the site to identify cracks, curling edges, or visible settlement. This helps determine where detailed measurements are most critical.
Step 2: Measurement Systems
The F-Number System
The F-Number System is the most widely used standard in North America. It evaluates two key measurements:
- FF (Floor Flatness): Reflects how smooth a floor is over short distances. High FF means fewer bumps and dips.
- FL (Floor Levelness): Measures slope or tilt over long distances. High FL indicates a more consistent elevation across the slab.
For example:
- FF 25 / FL 20 → General construction floors (adequate for light traffic).
- FF 50 / FL 35 → Super flat floors required for high-bay warehouses or automated equipment.
Laser Scanning
Laser scanners create a digital 3D map of the floor by capturing thousands of points per second. This method is fast, accurate, and ideal for very large facilities where consistency must be documented.
Dipstick Profilers
The “dipstick” device is a highly precise tool used for FF/FL measurement. It measures surface elevation differences along a line at set intervals, making it a trusted tool for verification in critical areas.
Straightedge Method
For smaller projects or quick checks, surveyors may use a 10-foot straightedge placed directly on the slab. While not as precise as other methods, it provides a practical way to spot significant deviations.
Step 3: Data Analysis
Collected data is processed and compared to project specifications. Reports detail average FF/FL values, highlight areas outside tolerance, and provide recommendations for corrective actions.
Industry Standards and Tolerances
Floor level surveys are only meaningful when measured against recognized industry standards. These standards establish what “flat” or “level” truly means in a practical setting and help owners, contractors, and engineers ensure that a floor will meet the demands of its intended use.
Several organizations publish guidelines and standards for evaluating floor flatness (FF) and floor levelness (FL):
- ASTM E1155 – The primary U.S. standard for measuring floor flatness and levelness. It describes how to calculate FF and FL numbers using a statistical method based on elevation differences between consecutive measurement points.
- ACI 302 – Offers comprehensive guidance on concrete floor construction, finishing techniques, and recommended tolerances for different types of facilities.
- ACI 117 – Defines the standard tolerances for concrete construction, including specifications for both FF and FL values. It also addresses quality control and acceptance criteria for finished floors.
These standards are not “one-size-fits-all.” Instead, the required tolerance depends heavily on the type of facility, traffic patterns, and the equipment being used. A retail store, for example, doesn’t require the same precision as a high-bay warehouse using laser-guided forklifts.
Typical Tolerances by Application
| Application / Facility Type | Typical FF (Flatness) | Typical FL (Levelness) | Notes & Considerations |
| Conventional warehouses, general storage | FF 20 | FL 15 | Adequate for basic forklift traffic and palletized goods. |
| Retail spaces, moderate storage facilities | FF 35 | FL 25 | Provides smoother finishes suitable for customer-facing environments and lighter equipment use. |
| High-bay warehouses with ASRS (Automated Storage and Retrieval Systems) | FF 50+ | FL 35+ | Precision needed to ensure automated guided vehicles and cranes operate without misalignment or errors. |
| Super flat applications (defined traffic areas, e.g., very narrow aisle warehouses) | FF 100+ | Often not specified or secondary | Required for environments with extremely tight operational tolerances; focuses on controlling wheel paths of guided vehicles. |
Key Takeaways:
- Higher FF/FL = Stricter Tolerance – As the demands on a floor increase (e.g., automation, heavy loads, precision equipment), so do the flatness and levelness requirements.
- Defined Traffic vs. Random Traffic – In warehouses with defined traffic (like Very Narrow Aisle systems), super flat floors ensure that guided vehicles travel smoothly along the same paths. In random traffic environments, tolerances can be more forgiving.
- Project-Specific Requirements – The tolerances listed above are guidelines, but the actual numbers must be determined based on the specific operational needs of the facility. Engineers often consult with equipment manufacturers to match floor performance with machine tolerances.
Applications of Floor Level Surveys
Floor level surveys are valuable in multiple phases of construction and facility management:
- New Construction: Verifies that floors meet specifications before handover.
- Renovations: Evaluates existing slabs before installing heavy equipment or automation.
- Routine Maintenance: Identifies wear or settlement over time.
- Litigation and Claims: Provides evidence in disputes between contractors, owners, and operators regarding floor quality.
- Specialized Environments: Cold storage, cleanrooms, and laboratories require strict levelness to maintain safety and compliance.
Benefits of Conducting a Floor Level Survey
Conducting a floor-level survey provides multiple advantages for industrial and commercial facilities:
- Quality Assurance: A survey confirms that the concrete floor meets design specifications and performance goals. By identifying deviations early, construction teams can correct issues before equipment installation or facility operation begins.
- Reduced Costs: Detecting uneven floors early prevents costly rework, delays, or downtime. Facilities save money by addressing issues before they impact operations or require major slab repairs.
- Improved Efficiency: Smooth, level floors allow forklifts, pallet jacks, conveyors, and automated guided vehicles to operate optimally. This reduces equipment wear, minimizes energy consumption, and ensures faster, more consistent material handling.
- Long-Term Durability: Floors with uniform flatness and levelness distribute loads evenly, reducing stress points that lead to cracking, spalling, or joint failure. This extends the lifespan of the slab and lowers ongoing maintenance expenses.
- Safety: Level surfaces minimize tipping hazards, reduce the likelihood of slips or trips, and stabilize loads carried by forklifts or carts, protecting both workers and materials.
Challenges in Floor Level Surveys
While surveys are invaluable, they come with several challenges that must be managed:
- Environmental Sensitivity: Factors like temperature, humidity, and curing conditions influence how concrete behaves during and after installation. Surveys must account for these variables to ensure accurate measurements.
- Large Area Complexity: Conducting surveys across hundreds of thousands of square feet requires careful planning. Maintaining consistent tolerances over such large areas demands thorough measurement strategies and detailed data analysis.
- Specialized Equipment and Labor: Floor level surveys require trained personnel and precise instruments, such as laser scanners, dipstick profilers, or F-number calculators. This adds to initial project costs but is critical for accurate results.
- Interpreting Results: Data from a survey must be analyzed by experienced professionals. Not all deviations are equally problematic, so skilled interpretation is required to determine which areas need correction and which fall within acceptable tolerances.
Addressing Survey Findings: Corrective Measures
If a floor level survey reveals that a slab is out of tolerance, several corrective strategies are available:
- Grinding and Polishing: Removes high spots to improve flatness.
- Self-Leveling Overlays: Applied to correct depressions or uneven areas.
- Joint Repairs: Strengthens areas where curling or settlement has occurred.
- Localized Patching: Fixes small areas without replacing the entire slab.
- Replacement: In severe cases, sections of the slab may need to be replaced.
Proactive correction ensures facilities remain safe, efficient, and compliant with operational requirements.
Maintaining Floor Levelness Over Time
Even a perfectly constructed floor will require maintenance. Regular surveys paired with good practices help protect long-term performance.
- Routine Cleaning: Keeps debris from causing abrasion or interfering with equipment.
- Protective Coatings and Sealers: Minimize moisture penetration and chemical damage.
- Load Management: Avoids excessive point loading that can cause settlement.
- Scheduled Inspections: Identifies cracks, spalling, or curling before they become severe.
- Resealing and Repairs: Keeps surfaces protected and within tolerance for decades.
With proper maintenance, floors can remain serviceable for 20 years or more, even under demanding industrial conditions.
Case Example: Distribution Centers
Consider a high-bay distribution center using an automated retrieval system. These systems require extremely flat and level floors to operate without interruption. A floor level survey conducted during construction verified compliance with FF 80 / FL 50 tolerances. By catching small deviations early, contractors adjusted slab finishing techniques before completion.
The result: reduced downtime, seamless automation integration, and lower long-term maintenance costs. Without the survey, the facility might have faced operational delays or costly remediation after installation.
Conclusion
A floor level survey is a critical tool for ensuring concrete slabs meet the performance demands of modern facilities. By providing accurate measurements of flatness and levelness, these surveys safeguard efficiency, safety, and durability.
Whether in new construction, renovation, or ongoing maintenance, floor level surveys deliver essential data that protects investments and supports long-term success. For industries that depend on automation, heavy equipment, and high-traffic operations, they are not optional—they are a necessity.
