Warehouses across the United States are under pressure to store more products while keeping operations efficient. As e-commerce continues to rise and retail distribution becomes more complex, space is becoming one of the most valuable assets a warehouse can manage.

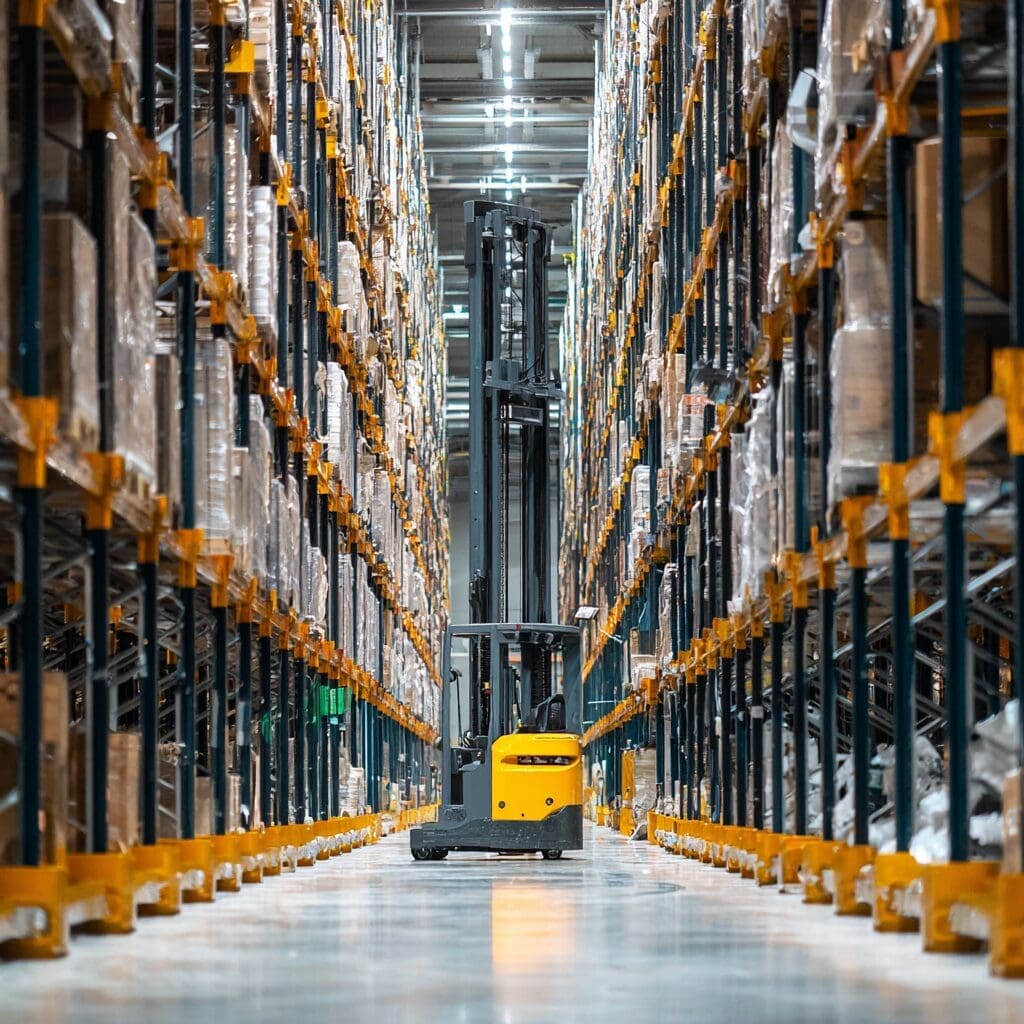

The solution many operators are turning to is very narrow aisle racking, often shortened to VNA racking. Very narrow aisle racking is a storage system designed to increase capacity by reducing aisle width and maximizing vertical space without sacrificing access to pallets. It has become a go-to system for businesses that need high-density storage in limited footprints.
What Makes Very Narrow Aisle Racking Different?
Traditional pallet racking typically requires wide aisles so forklifts can maneuver comfortably. These aisles often consume up to half the available warehouse floor space. Very narrow aisle racking reclaims much of that wasted space by shrinking aisle widths, sometimes to as little as 5.2 to 6.6 feet, compared to the 10 to 12 feet required for standard racks.
The defining feature of VNA racking is its ability to shrink aisle space while still allowing full pallet access through specialized equipment. Instead of conventional forklifts, wire-guided or rail-guided turret trucks operate in these narrow spaces. These machines can rotate their forks 180 degrees, allowing operators to pick pallets from either side of the aisle without turning the truck.
In practice, this means a warehouse can boost its storage capacity by 40 to 50 percent within the same building footprint. For example, a 100,000-square-foot warehouse in Dallas using standard selective racking might store 10,000 pallets. Switching to VNA could allow that same warehouse to hold closer to 15,000 pallets without any expansion.
Equipment Designed for VNA
To function smoothly, VNA systems require specialized equipment such as:
- Turret trucks that can rotate forks to access both sides of the rack.
- Wire-guided trucks that follow floor-embedded wires to stay centered in the aisle.
- Rail-guided trucks with floor tracks that prevent drifting.
These trucks allow for precision handling in tight spaces and reduce the risk of rack impact, but they do represent an upfront investment compared to standard forklifts.
Advantages of Very Narrow Aisle Racking
The reason so many companies invest in VNA is simple: it makes better use of space. Warehousing costs are rising, especially near U.S. ports and large metropolitan areas like Los Angeles, New Jersey, and Chicago. Building new facilities is expensive, so maximizing existing square footage is often the smartest option.
The greatest advantage of very narrow aisle racking is that it increases storage density while keeping every pallet directly accessible. Unlike drive-in or push-back systems, where pallets are stored multiple positions deep, VNA provides full selectivity. This means companies can follow first-in, first-out (FIFO) inventory control without disruption.
Other advantages include:
- Higher productivity. Turret trucks can operate quickly and efficiently in narrow aisles.
- Better space utilization. Vertical capacity is fully optimized in tall warehouses.
- Improved safety. Guided forklift systems reduce the likelihood of collisions with racks.
- Long-term cost savings. Companies avoid costly building expansions or relocations.
For example, Amazon’s fulfillment centers often use variations of narrow aisle systems to accommodate their vast SKU counts. The ability to store a high volume of products in one facility helps keep shipping costs down and speeds up delivery times.
Limitations You Should Consider
Even with clear benefits, VNA racking is not suitable for every warehouse. The system has specific requirements that can make implementation challenging for smaller operators.
The main limitation of VNA racking is the reliance on specialized trucks and precise floor conditions. Standard forklifts are too large for the narrow aisles, and the specialized equipment https://www.qmhinc.com/vna-systems/requires smooth, level floors to operate safely. If a warehouse floor has cracks or uneven slabs, it may need resurfacing before installation.
Additional limitations include:
- High equipment costs. Turret trucks are significantly more expensive than standard forklifts, often starting at $75,000.
- Operator training. Workers must be trained to handle VNA equipment properly.
- Maintenance needs. Wire-guided or rail systems must be maintained to prevent downtime.
- Speed trade-offs. While productivity is high in dense storage, pallet movement in narrow aisles can be slower compared to wider, more open layouts.
For instance, a regional food distributor in Ohio might hesitate to adopt VNA if their pallet turnover is extremely high and their products require rapid in-and-out movement. In such cases, wider aisles may still be more efficient overall.
Applications of Very Narrow Aisle Racking
VNA racking shines in industries where space is costly and accessibility is critical. The most common applications of very narrow aisle racking are in high-SKU environments where full pallet selectivity is needed.
Industries that benefit include:
- Retail distribution centers. Chains like Walmart use high-density storage to keep shelves stocked without expanding warehouse footprints.
- Pharmaceutical warehouses. VNA supports strict rotation policies and accurate picking.
- E-commerce fulfillment hubs. High SKU counts and rapid shipping requirements make VNA an ideal choice.
- Cold storage facilities. Since refrigerated space is expensive to maintain, maximizing density is vital.
For example, a cold storage operator in California can save thousands of dollars annually in energy costs by storing more pallets in a smaller refrigerated area using VNA racking instead of standard systems.
Choosing the Right Very Narrow Aisle Racking System
Not all VNA systems are alike. Some are designed for uniform pallets, while others allow more flexibility in pallet size and shape. The right choice depends on inventory characteristics and building design.
The best VNA racking system is one tailored to your warehouse’s ceiling height, floor conditions, and material flow. Working with a professional design team ensures that rack layout, truck choice, and guiding system align with long-term needs.
Key Factors to Evaluate
- Warehouse height. The taller the building, the more return on investment VNA provides.
- Floor condition. Floors must be level within strict tolerances.
- Pallet types. Consistency in pallet size makes system design easier.
- Turnover rate. VNA is most efficient where accessibility is more important than extreme speed.
Comparison Table: Standard vs. Very Narrow Aisle Racking
| Feature | Standard Pallet Racking | Very Narrow Aisle Racking |
| Aisle Width | 10–12 feet | 5.2–6.6 feet |
| Storage Density | Medium | High |
| Accessibility | Direct | Direct |
| Equipment Needed | Standard forklifts | Turret trucks, VNA trucks |
| Floor Requirements | Basic | High precision, level floor |
| Best for | General storage | High SKU, dense facilities |
Maintenance and Safety in VNA Warehouses
Very narrow aisle (VNA) racking systems deliver excellent storage density, but their success depends heavily on how well they are maintained and how safely they are operated. The long-term performance of VNA systems rests on consistent inspections, proper equipment care, and strong safety protocols. Warehouses that prioritize these areas reduce downtime, protect their investment, and safeguard workers.
Routine Racking Inspections
Racks are the backbone of a VNA system, and even minor damage can compromise safety. Inspections should be conducted regularly to check for bent uprights, loose bolts, or cracked welds. A professional inspection once or twice a year is recommended, but internal checks by warehouse staff should occur more frequently, especially in high-traffic aisles.
Identifying and repairing rack damage early prevents accidents and prolongs the lifespan of the system. In many U.S. warehouses, OSHA emphasizes the importance of clear load ratings and proper record-keeping for repairs. Adding protective guards at aisle ends and column bases also reduces impact risks.
Equipment Maintenance
VNA relies on specialized turret or wire-guided trucks. These machines need more precise care than standard forklifts. Regular servicing includes checking guidance systems, ensuring forks rotate smoothly, and calibrating sensors. Floors must also be inspected and kept in perfect condition, since uneven or cracked surfaces can cause operational issues.
The reliability of VNA equipment directly impacts both safety and productivity. A poorly maintained turret truck not only slows operations but increases the risk of collisions within the narrow aisles. Creating a service schedule and training staff to report mechanical concerns promptly ensures uptime and reduces repair costs.
Operator Training and Safety Practices
Workers play the biggest role in keeping VNA warehouses safe. Operators must receive thorough training on turret truck controls, emergency procedures, and load handling techniques. Safety drills, refresher courses, and clear signage around aisles keep awareness high.
Well-trained operators are the strongest safeguard against accidents in narrow aisles. They learn how to maneuver safely, avoid overloading racks, and respond correctly if equipment malfunctions. Warehouses can also improve safety by enforcing speed limits, marking pedestrian zones, and ensuring proper lighting.
Building a Culture of Safety
Maintenance and training are effective only when supported by a broader culture of safety. Managers should encourage open communication, where workers feel comfortable reporting hazards or near-misses. Digital tools such as inspection apps or safety dashboards make it easier to track issues and follow up quickly.
A strong safety culture turns VNA warehouses into efficient, reliable, and secure workplaces. By combining routine rack inspections, diligent equipment care, and continuous operator training, businesses can ensure that their VNA systems operate at peak performance for years.
Common Concrete Repairs for Industrial Facilities and How to Address Them
Industrial warehouses, especially those operating with very narrow aisle racking, rely on smooth, durable floors to keep equipment stable and safe. Over time, concrete surfaces may develop cracks, spalling, or joint damage due to heavy traffic and constant forklift use. Addressing concrete repairs quickly is essential for maintaining both safety and operational efficiency.
Small cracks can often be sealed with epoxy fillers, while larger structural issues may require resurfacing or slab replacement. Regular inspections help catch problems before they escalate into costly hazards. By combining proactive floor maintenance with VNA system care, facilities can extend the life of their racking, ensure equipment runs smoothly, and create a safer environment for workers and products alike.
