Concrete coring is a specialized technique used in construction, renovation, and civil engineering to create precise openings or holes in concrete structures. It involves drilling through concrete walls, floors, or slabs to extract cylindrical cores.
This process is crucial for a variety of applications, including utility installation, structural testing, or retrofitting, and requires a combination of expertise, specialized equipment, and safety measures. In this article, we’ll cover concrete coring techniques and their applications in construction and highlight the benefits of precision, versatility, and non-destructive nature.
What is Concrete Coring?
Concrete coring involves the process of extracting a cylindrical section, or core, from a larger concrete mass using specialized equipment known as a core drill. This equipment is designed with a hollow, cylindrical steel tube featuring diamond or carbide-coated cutting edges, enabling it to bore through dense and reinforced concrete surfaces effectively. The durability and strength of these cutting materials allow the drill to penetrate the concrete without causing cracks or damage to the surrounding area, thereby maintaining the integrity of the structure.
The outcome of this process is a smooth, clean, and precisely measured hole that can be utilized for various applications. Concrete coring is frequently used in projects requiring openings for plumbing pipes, electrical conduits, HVAC systems, or communication lines. Furthermore, this technique is valuable for extracting core samples needed to test the concrete’s quality and strength for structural analysis. Overall, concrete coring serves as a versatile and vital method in construction, renovation, and civil engineering projects, where precision and minimal disruption are of utmost importance.
Types of Concrete Coring Techniques
A variety of coring techniques are employed based on the size, depth, and nature of the concrete being drilled. Each method comes with specific applications and advantages:
Diamond Core Drilling
This is the most widely used method of concrete coring. Utilizing diamond-coated bits, this technique allows for high-precision cuts through reinforced concrete, stone, or asphalt. It can be performed in both wet and dry conditions, producing smooth, clean holes without causing cracks or structural damage. Diamond core drilling is particularly effective for heavy-duty applications, such as coring in high-rise buildings or bridge foundations.
Handheld Core Drilling
This approach uses a portable core drill that can be operated manually. Handheld core drilling is perfect for smaller tasks where mobility is essential, such as creating holes for pipes, electrical lines, or ventilation systems in residential or light commercial buildings. Typically, handheld drills are used for core holes with smaller diameters, generally up to around 6 inches.
Rig-Mounted Core Drilling
For more extensive and deeper coring projects, rig-mounted core drilling is the preferred technique. A core drill is securely mounted on a stable rig or stand, providing enhanced control and precision. This method is commonly employed for drilling through thick concrete slabs or walls in industrial or commercial settings.

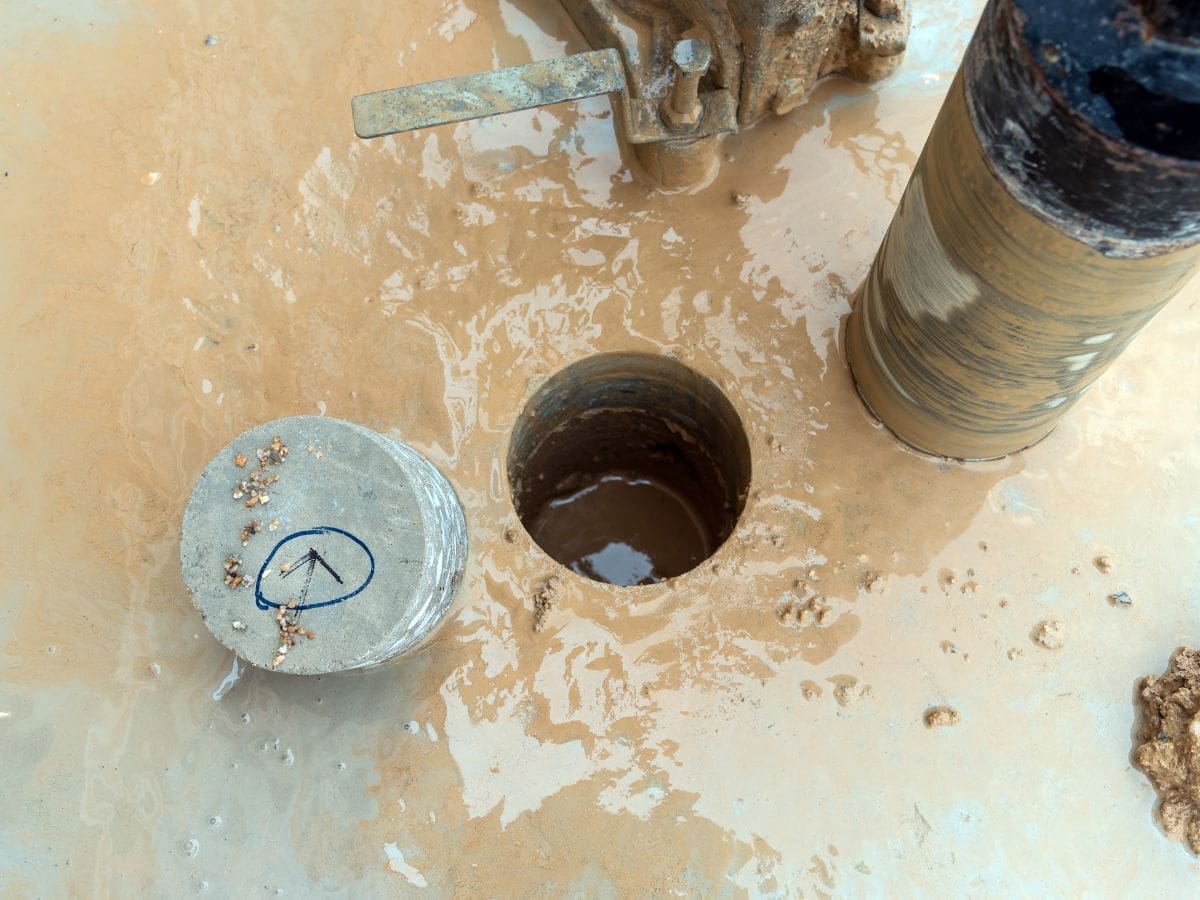

Wet Core Drilling
In this method, water is utilized to cool the core bit and reduce friction during the drilling process. Wet core drilling effectively minimizes dust generation, reduces wear on the drill, and ensures smoother cuts. This technique is particularly useful for large-scale projects or in scenarios where excessive dust could pose health and safety concerns.
Dry Core Drilling
As the name suggests, dry core drilling is performed without the use of water. This technique is mainly used in indoor environments where water cooling is not feasible or where electrical hazards may exist. While it produces more dust than wet coring, it can be a faster option for shallow or smaller-diameter holes.
Each coring technique offers distinct advantages, making it essential to select the appropriate method for safe and efficient concrete drilling tailored to the specific needs of the project.
Applications of Concrete Coring
Concrete coring is an adaptable technique utilized across a wide array of construction and renovation projects, allowing for the creation of clean and precise holes in concrete structures. Its applications are extensive and cater to both industrial and residential requirements:
Plumbing and Electrical Installations
Concrete coring is commonly employed to create openings for plumbing pipes, electrical conduits, and wiring in buildings. This approach facilitates the seamless integration of critical systems while avoiding damage to the surrounding structure.
HVAC System Installation
Coring is essential for making holes needed for ductwork, ventilation shafts, or air conditioning systems. The technique allows for precise cuts, ensuring that HVAC units are installed efficiently without causing undue structural damage.
Structural Testing
Core samples extracted through concrete coring are utilized for testing the strength and integrity of existing concrete structures. These samples provide engineers with valuable information needed to assess the durability and stability of the construction.
Anchoring and Bolt Placement
Concrete coring allows for the accurate installation of anchor bolts, dowels, or supports for heavy equipment. This ensures that structural reinforcements or machinery are securely positioned and properly aligned.
Demolition and Renovation Projects
In the context of demolition or remodeling work, concrete coring can be used to selectively remove sections of concrete without affecting the integrity of the entire structure. This method simplifies the process of updating or repurposing existing buildings.
Overall, concrete coring is vital for ensuring precision and safety across diverse construction applications, encompassing everything from new constructions to renovations and structural assessments.
Safety Considerations in Concrete Coring
While concrete coring is a highly effective technique, it also carries significant risks that necessitate careful safety measures to protect workers and ensure proper execution. Key safety considerations include:
Proper Personal Protective Equipment (PPE)
Workers should wear appropriate PPE, including gloves, safety glasses, hard hats, ear protection, and steel-toed boots. This gear protects against dust, debris, noise, and potential hazards that may arise during the drilling process.
Equipment Inspection and Maintenance
Regular inspection and maintenance of core drilling equipment is critical to ensure proper functionality. Tools that malfunction or worn-out drill bits can lead to accidents; therefore, all gear should be thoroughly checked before use.
Dust Control and Ventilation
The coring process generates considerable dust, which can be harmful if inhaled. Implementing adequate dust control measures—such as employing wet coring techniques or using vacuum attachments—along with ensuring proper ventilation is essential for safeguarding workers’ respiratory health.
Stability and Positioning
Securing core drilling rigs firmly to the work surface is crucial to prevent any slipping or shifting during operation. Maintaining this stability is vital for ensuring control and preventing potential injuries.
Electrical and Utility Hazards
Before commencing any drilling work, it is essential for workers to check for hidden electrical wires, gas lines, or other utilities to avoid accidental damage or dangerous contact with live wires. Utilizing ground-penetrating radar or similar detection tools can help identify these hazards effectively.
Adhering to these safety measures will ensure that concrete coring is executed efficiently while minimizing worker and equipment risks.
Key Benefits of Concrete Coring
Concrete coring offers numerous advantages, making it a preferred choice in various construction and renovation projects. Some of the key benefits include:
Precision and Accuracy
This technique allows for the creation of highly precise and clean-cut holes in concrete structures. Such accuracy is crucial for successfully installing pipes, conduits, and other building systems without damaging adjacent areas.
Minimal Structural Damage
The coring process is designed to target specific sections of concrete without compromising the overall integrity of the structure. This approach reduces the risk of cracks or other damage that may arise from more invasive cutting methods.
Versatility
Concrete coring can be employed in a wide range of applications, from small residential projects to large-scale industrial installations. It is adaptable to different materials, including reinforced concrete, masonry, and asphalt.
Reduced Noise and Vibration
Compared to other cutting or demolition methods, concrete coring generates significantly less noise and vibration. This characteristic makes it particularly suitable for use in sensitive environments, such as hospitals or office buildings, where disruptions must be minimized.
Cost-Effectiveness
By reducing damage and the need for extensive repairs, concrete coring can be a more cost-effective option in the long run. Its precision also contributes to less waste and more efficient project timelines.
These benefits position concrete coring as a valuable technique for conducting efficient, safe, and precise concrete work across a diverse range of construction projects.
Conclusion
Concrete coring is an essential practice in modern construction and civil engineering, providing a precise and non-destructive means of creating openings and extracting samples from concrete structures. The various techniques available offer adaptability to meet the specific needs of different projects, whether for utility installations, structural testing, or retrofitting.
The benefits of concrete coring, which include precision, minimal noise, and versatility, underscore its importance as a go-to solution for a wide array of construction applications. By adhering to safety guidelines and utilizing appropriate equipment, professionals can ensure that coring is conducted efficiently while safeguarding workers and the integrity of the structures involved.
