Non-destructive hydro vac excavation for utility exposure, potholing, and tight-area excavation across North Carolina construction sites
Pressurized water cuts through soil without the blade contact that mechanical excavation risks when working near live utilities.
Hydro excavation exposes existing underground utilities safely before mechanical equipment moves into the area, eliminating the damage and service disruption a utility strike causes.
Hydro vac equipment can expose utilities in areas where an excavator cannot access or safely operate without risk of damaging adjacent utilities or structures.
Potholing with hydro excavation confirms the actual location and depth of existing utilities before the construction plan assumes where they are.
Vacuumed spoil is loaded directly into the hydro excavation machine’s debris tank without manual handling or spoil piles adjacent to the excavation.
Hydro excavation exposes utilities in a fraction of the time that hand digging requires in the same area, keeping the construction schedule on track.
A utility strike on a live water main, sewer, gas, or electric line creates repair costs, service disruption, and safety hazards that hydro excavation prevents.
Hydro excavation coordinated alongside underground utility installation, repair, and emergency response by the same team.
Hydro excavation is a non-destructive excavation method that uses pressurized water to break up soil and a vacuum system to remove the loosened material into a debris tank on the hydro excavation machine. The process exposes underground utilities, structures, and other buried features without the blade or bucket contact that mechanical excavation risks when working in areas with existing underground infrastructure. On construction sites, hydro excavation is used to expose utilities safely before crossing or connecting to them, confirm utility locations where locates may be inaccurate, and excavate in confined areas where mechanical equipment cannot operate without risk of damage to adjacent utilities or structures.
Underground utility strikes are one of the most disruptive and costly incidents on a commercial construction site. A backhucket through a live water main, sewer force main, gas line, or buried electric conduit creates immediate repair costs, service disruption to adjacent properties, potential safety hazards, and project delays while the damaged utility is repaired and the area is reinspected before construction can continue. Utility locates from 811 mark the approximate location of existing utilities within a tolerance that is often wider than the working clearance available when crossing utilities in a congested underground corridor. Hydro excavation eliminates the uncertainty by exposing the actual utility before mechanical equipment moves in.
We use hydro excavation at utility crossings, connections to existing mains, and any location where the ground conditions or the density of existing underground infrastructure make mechanical excavation in that area a utility strike risk.
The hydro excavation machine carries a pressurized water system and a vacuum debris system mounted on a truck. A wand connected to the water system directs a pressurized water stream at the soil surface, breaking it up and turning it into a slurry. The vacuum system simultaneously draws the slurry up through a suction hose and into the debris tank on the truck, removing material from the excavation without manual digging or spoil piles adjacent to the hole. The operator controls the water pressure and vacuum to match the soil conditions and the sensitivity of the utilities being exposed, using lower pressure near confirmed utility locations to avoid damage to pipe coatings, conduit, and utility surfaces.
The result is a clean, controlled excavation that exposes the utility to the depth needed for the construction operation, with spoil contained in the truck’s debris tank rather than piled on the ground surface.
Potholing is the process of excavating a small test hole to confirm the location and depth of an existing underground utility before construction equipment crosses it or works in the vicinity. 811 utility locates provide an approximate location based on as-built records and locating equipment, but actual utility position can vary from the marked location due to installation variation, locating error, and the limitations of the locating method used. Potholing with hydro excavation confirms the actual position before the construction plan assumes a clearance that may not exist in the field.
We perform potholing as part of our hydro excavation scope ahead of pipeline crossings, trench installations in congested utility corridors, and directional boring operations where the bore path needs to be confirmed clear of existing utilities before the bore begins.
Hydro excavation safety on construction sites extends beyond the prevention of utility strikes. Working near live utilities with mechanical excavation equipment creates risks for equipment operators, ground personnel, and adjacent workers that hydro excavation significantly reduces. A utility strike on a gas line creates an immediate explosion and fire risk. A strike on a high-voltage electric conduit creates an electrocution risk for the equipment operator and ground personnel in the area. A pressurized water main strike creates a sudden water release that can destabilize the surrounding excavation and create a drowning risk in a deep trench.
Hydro excavation eliminates blade and bucket contact with utilities entirely, replacing it with pressurized water that breaks up soil without the energy required to sever a pipe or conduit. The water pressure used in hydro excavation is controlled and directed by the operator, and it is reduced near confirmed utility locations to prevent damage to pipe coatings and utility surfaces.

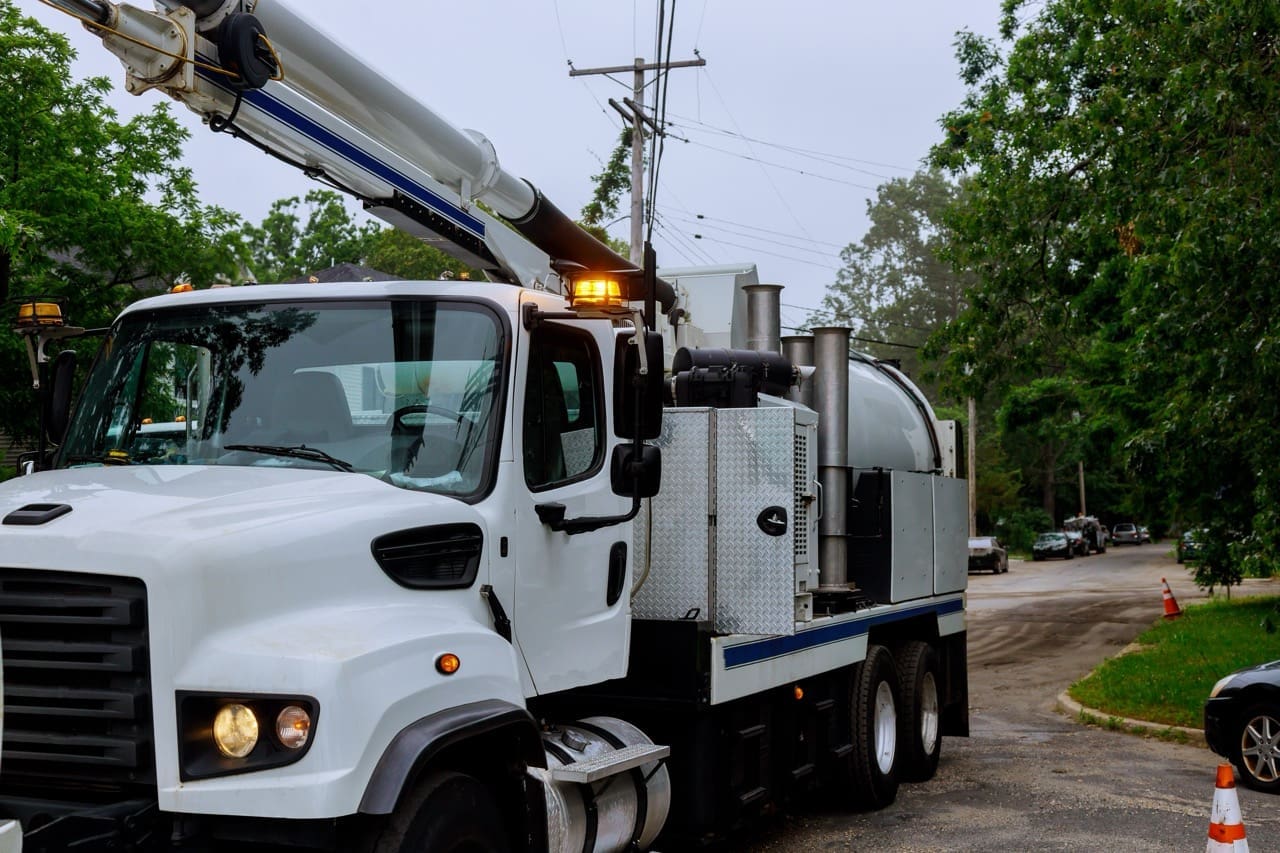

Hydro vac excavation equipment consists of a truck-mounted system combining a high-pressure water pump, a water tank, a vacuum blower, and a debris tank. Water pressure and flow rate are adjustable to match the soil type and the sensitivity of the utilities being exposed. The vacuum system generates sufficient suction to lift slurry from depths well below the ground surface through the suction hose and into the debris tank. Boom reach on the vacuum hose allows the truck to be positioned away from the excavation area, which matters in congested sites where truck access directly over the excavation location is not possible.
Debris tank capacity determines how much material can be removed before the truck needs to be offloaded. On projects with significant hydro excavation volume, we coordinate offloading logistics so work can continue without extended interruptions to empty the debris tank.
Beyond utility exposure and potholing, hydro excavation is used on commercial construction projects for a range of applications where controlled, non-destructive excavation is required. Slot trenching for utility installation in congested corridors uses hydro excavation to open a narrow trench alongside existing utilities without disturbing them. Excavation around existing foundations and structures where mechanical equipment would risk contact with the structure uses hydro excavation to expose the foundation safely. Cold weather excavation in frozen ground uses heated water to thaw and break up frozen soil that mechanical equipment struggles to penetrate efficiently.
On commercial utility installation projects, we use hydro excavation ahead of mechanical excavation at crossings and connections to existing utilities, then transition to conventional excavation equipment for the open trench installation that follows. Coordinating the two methods keeps the project moving efficiently, with hydro excavation handling the sensitive areas where utility strikes are a risk and conventional excavation handling the bulk trench work where mechanical equipment is faster and more cost-effective.
Hydro excavation is typically needed at specific points in the construction schedule where crossing or connecting to existing utilities is required. We schedule hydro excavation ahead of the mechanical excavation and pipe installation that follows each utility exposure, so the crossing or connection location is confirmed and cleared before the installation crew needs to work there. On projects with multiple utility crossings, we sequence potholing and exposure work to stay ahead of the pipe installation schedule without creating bottlenecks at crossing locations.
Hydro excavation is a non-destructive excavation method that uses pressurized water to break up soil and a vacuum system to remove the loosened material, exposing underground utilities and buried features without the risk of mechanical excavation contact with live lines.
Mechanical excavation equipment cannot distinguish between soil and a buried utility pipe or conduit. Hydro excavation uses water pressure rather than mechanical force to break up soil, eliminating the blade and bucket contact that causes utility strikes.
Potholing is the process of excavating a small test hole to confirm the actual location and depth of an existing underground utility before construction equipment crosses it or works in the vicinity. It is performed with hydro excavation equipment to expose the utility without risk of damage.
811 locates mark the approximate location of existing utilities based on as-built records and locating equipment. Actual utility position can vary from the marked location due to installation variation and locating limitations. Potholing confirms the actual position before mechanical equipment moves into the area.
Loosened soil and slurry are vacuumed directly into the debris tank on the hydro excavation truck, removing material from the excavation without spoil piles adjacent to the hole. Material is offloaded at an approved disposal location when the debris tank reaches capacity.
Yes. Heated water is used in cold weather hydro excavation to thaw and break up frozen soil that is difficult for mechanical equipment to penetrate efficiently.
Yes. We use hydro excavation ahead of mechanical excavation at utility crossings and connections on our underground utility installation projects, coordinating the two methods so sensitive areas are exposed safely before pipe installation crews move in.
