Water baffle systems for sediment basins and retention ponds across North Carolina construction sites
Water baffles slow flow through the basin and distribute it evenly, giving sediment more time to drop out before water reaches the outlet.
Without baffles, water takes the shortest path from inlet to outlet. A properly installed baffle system forces flow across the full basin length.
Pond baffle installation is a standard requirement on permitted sediment basins in North Carolina and is verified during regulatory inspections.
Floating baffles rise and fall with water level, maintaining their position and effectiveness regardless of how full the basin is.
Water baffles reduce the velocity and turbulence of water approaching the outlet structure, protecting it from erosion and undercutting.
We install baffles as part of the sediment basin construction scope, not as a separate mobilization.
We inspect and repair baffle systems after storm events to keep them positioned and functional through the full project.
Pond baffles, sediment basins, silt fence, and stabilization handled by the same team and point of contact.

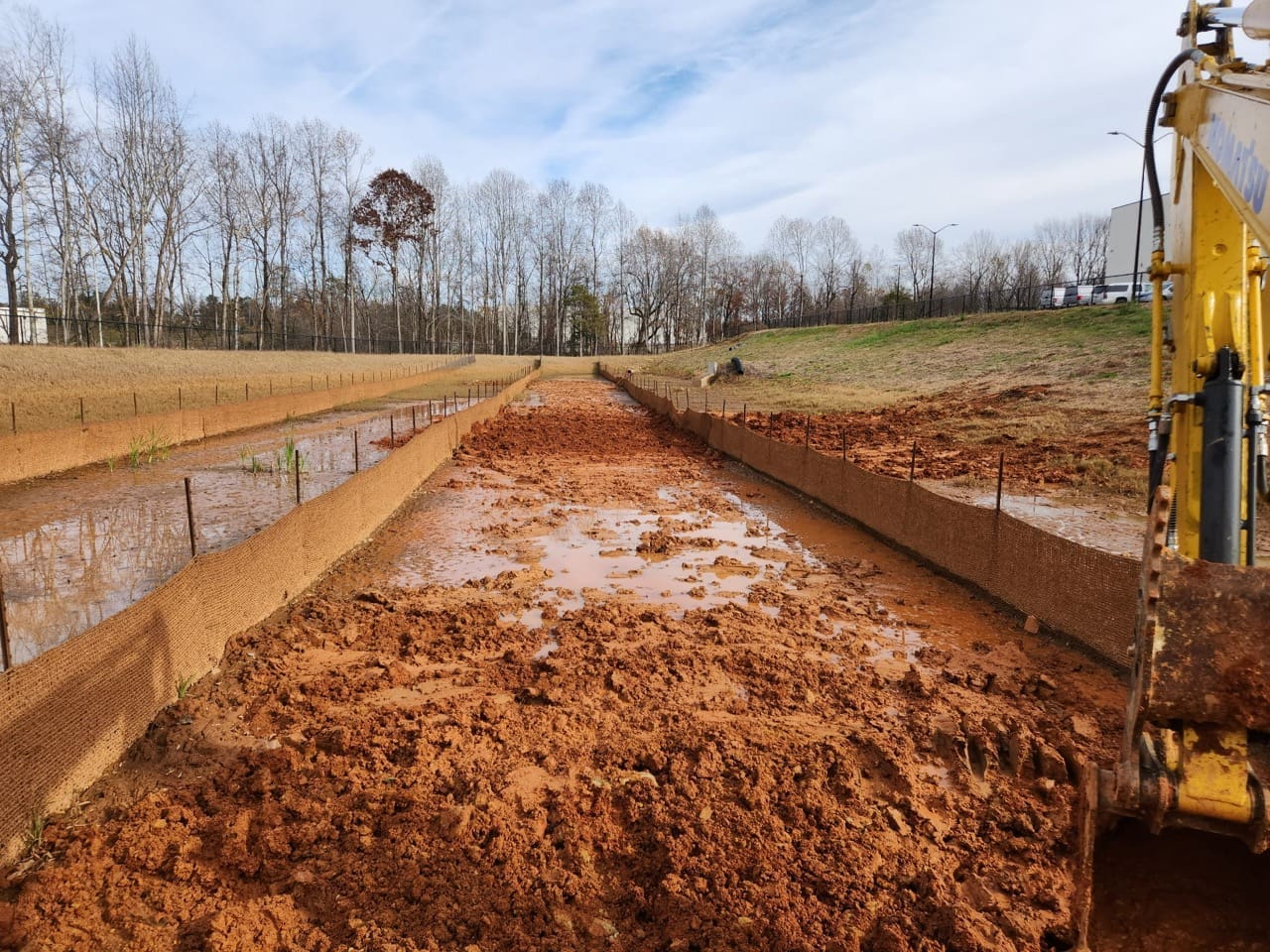

A pond baffle is a permeable barrier installed across the width of a sediment basin or retention pond to slow and distribute flow as water moves from the inlet to the outlet. On construction sites, sediment basins collect runoff from disturbed areas and allow soil particles to settle out before water is discharged. Without baffles, water entering the basin takes the most direct path to the outlet, which means it moves too quickly for sediment to settle and a significant portion of the basin volume is never used. A water baffle system forces flow across the full basin, extending the path water travels and giving sediment the time and distance it needs to drop out.
A water baffle system divides a sediment basin into a series of cells by installing baffles perpendicular to the flow path between the inlet and outlet. Water entering the basin must pass through or around each baffle in sequence rather than traveling directly to the outlet. The baffles slow the water velocity, distribute flow evenly across the basin width, and prevent the short-circuiting that occurs when a direct flow path forms between the inlet and outlet. The result is a basin that uses its full storage volume for sediment settling rather than a fraction of it.
Floating baffles are anchored to the basin floor and sides but float on the water surface, maintaining their position and effectiveness as water levels rise and fall during storm events. This makes them the standard choice for construction site sediment basins where water levels fluctuate significantly between dry conditions and storm events.
We install pond baffles as part of the sediment basin construction scope, positioning and anchoring baffle panels to the basin geometry and permit specifications before the basin goes into service. Baffle placement, spacing, and attachment methods are determined by basin dimensions, the location of the inlet and outlet structures, and the permit requirements for the project.
Proper installation requires the baffle to span the full width of the basin without gaps at the edges that allow water to route around rather than through the baffle. Edge sealing and anchor point selection vary depending on whether the basin has compacted earth sideslopes, concrete walls, or riprap lining. We assess the basin construction before specifying the attachment approach so the baffle system is secure and gap-free from the first storm event.
Floating baffles are the most commonly specified water baffle type for construction site sediment basins because they maintain their effectiveness across the full range of water levels a basin experiences during the construction period. A fixed baffle installed at a set height performs well at the design water level but allows water to pass over the top at high water levels and leaves a gap below at low levels. A floating baffle moves with the water surface and maintains consistent coverage regardless of water level.
We install floating baffle systems using durable geotextile baffle panels with floats along the top edge and ballast or anchor attachments along the bottom to keep the panel vertical in the water column. Attachment to the basin sides is made with connections that allow the baffle to rise and fall freely without binding or creating gaps at the edges.
Sediment basin design and baffle requirements in North Carolina are governed by NCDEQ erosion and sediment control standards. Basins above a certain size and drainage area are required to include baffles as part of the permitted design, and baffle condition is a standard inspection item during regulatory site visits. A basin operating without functional baffles, or with baffles that have shifted and left gaps at the edges, will not perform to the design standard and will be cited during an inspection. We install baffles to meet the permit design and maintain them through the construction period so they are functional at every inspection.
The most common pond baffle failures on construction sites result from improper installation or lack of maintenance after storm events. Baffles that are not properly anchored at the edges shift during high-flow events and allow water to route around them, eliminating most of the settling benefit the baffle is supposed to provide. Baffles that accumulate debris and sediment along their face can become overloaded and fail structurally, particularly if the fabric panel is not maintained in good condition. We inspect baffle systems after significant storm events, reposition any panels that have shifted, clear debris accumulation, and repair or replace damaged sections before the next storm event puts the system back to work.
A sediment basin with baffles installed is not a set-and-forget system. Basin sediment accumulation, debris loading, and storm event movement all affect baffle performance over the course of a construction project. We provide maintenance as part of our pond baffle installation scope, including post-storm inspections, baffle repositioning, debris removal, and panel repair or replacement when condition warrants it. Keeping the baffle system functional through the full construction period is what makes the basin perform to its design standard rather than just at initial installation.
Pond baffles are most efficiently installed during sediment basin construction, before the basin goes into service. Installing baffles in a dry basin allows proper positioning, edge attachment, and anchor placement without working in standing water. We coordinate baffle installation with basin grading and outlet structure construction so the full system is operational before the drainage area it serves is disturbed by grading and clearing operations.
Sediment basins and their baffles need to be operational before the drainage area they serve is disturbed. We schedule basin construction and baffle installation ahead of clearing and grading in the contributing drainage area, so the system is in place and functioning when the first significant runoff event occurs. Maintenance scheduling is established at project kickoff and adjusted based on storm frequency and basin sediment accumulation rate throughout the construction period.
A pond baffle is a permeable barrier installed across a sediment basin to slow and distribute flow, prevent short-circuiting between the inlet and outlet, and improve sediment settling before water is discharged.
Without baffles, water takes the shortest path from the basin inlet to the outlet, using only a fraction of the available basin volume for settling. Baffles force water across the full basin length, extending travel time and improving sediment removal before discharge.
A floating baffle is a baffle panel that is anchored to the basin floor and sides but floats on the water surface, maintaining its position and effectiveness as water levels rise and fall during storm events.
In North Carolina, sediment basins above certain size and drainage area thresholds are required to include baffles as part of the permitted erosion control design. Baffle condition is a standard inspection item during regulatory site visits.
Baffles should be inspected after every significant storm event and maintained as needed to address shifting, debris accumulation, and panel damage. We provide maintenance as part of our pond baffle installation scope so systems stay functional through the full construction period.
Yes. We install baffles in existing basins, though installation is easier and more precise when done during basin construction before the basin goes into service.
