Gabion retaining walls, channel lining, and grade control structures for commercial and industrial sites across North Carolina
Gabion baskets conform to ground movement and settlement without cracking, making them more durable than rigid concrete structures in unstable or shifting ground conditions.
Water passes through gabion walls rather than building hydrostatic pressure behind them, eliminating one of the most common causes of retaining wall failure.
Gabion cages contain stone fill in a structured formation that resists displacement from high-velocity flow better than loose riprap placement.
Gabion channel lining holds its position under the flow velocities that displace conventional riprap and erode earthen channel banks.
Gabion walls cost less to install than poured concrete or block retaining walls and do not require drainage systems or footings in most applications.
Stone-filled gabion structures blend into site conditions more naturally than concrete, which matters on sites with aesthetic or environmental requirements.
Filled with heavy-duty rock, gabion baskets deliver a high-strength, low-maintenance solution for retaining walls, channel lining, and erosion control.
Gabion installation handled alongside silt fence, sediment basins, diversion ditches, and stabilization by the same team.

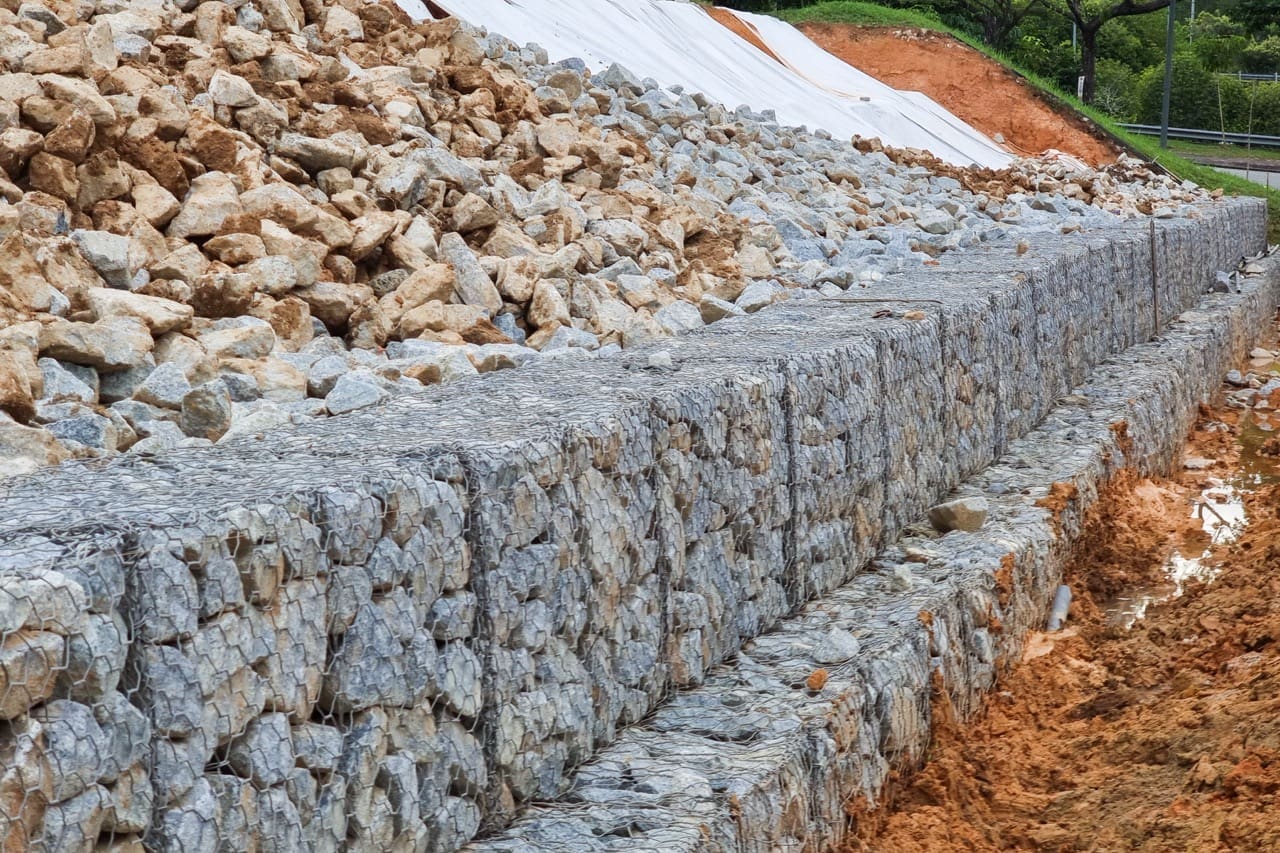

A gabion wall is a structure built from wire mesh baskets or cages filled with stone, stacked and connected to form a gravity retaining wall, slope protection structure, or channel lining. The wire mesh holds the stone fill in a defined form while allowing water to pass through freely, which eliminates the hydrostatic pressure buildup that causes rigid retaining walls to fail. Gabion walls are flexible structures that can tolerate ground movement and settlement without cracking or losing structural integrity, which makes them well suited to slopes, channel banks, and unstable ground conditions where a rigid concrete structure would require extensive foundation preparation to perform reliably.
On construction sites and developed properties, gabion baskets are used for erosion control in locations where the flow velocity, slope steepness, or structural load exceeds what seeding, matting, and loose riprap can handle. Common applications include channel bank stabilization where stream bank erosion is undercutting adjacent slopes or structures, grade control structures in drainage channels that need to hold the channel bed elevation against scour, slope toe protection where concentrated runoff from above is eroding the base of a fill slope, and outlet protection at culverts and basin discharge points where flow velocity exceeds the riprap sizing that would be required for a loose stone installation.
Gabion walls and conventional retaining walls serve the same basic function of holding a slope or grade change in place, but they do it differently and suit different site conditions.
Poured concrete and concrete block retaining walls are rigid structures that depend on their mass and foundation to resist the soil pressure behind them. They require drainage systems behind the wall to prevent hydrostatic pressure from building up, and they are susceptible to cracking and foundation failure if the ground settles unevenly beneath them. They are appropriate for urban and architectural applications where a clean vertical face is required and the site conditions are stable enough to support a rigid structure.
Gabion retaining walls are flexible gravity structures that resist soil pressure through mass and the interlocking of stacked basket courses. Water passes through the wall face rather than building pressure behind it, eliminating the need for a separate drainage system. The flexibility of the wire mesh basket system allows the wall to tolerate ground movement and differential settlement that would crack a concrete structure. Gabion walls are typically less expensive to install than poured concrete walls of comparable height and do not require the formwork, curing time, or specialized contractors that concrete wall construction demands.
We review the slope conditions, soil type, drainage area, and structural requirements at the installation location before specifying basket size, wall geometry, and stone fill gradation. For taller walls and walls carrying significant surcharge loads, we work from an engineer’s design that specifies the wall geometry and basket configuration required to meet the structural requirements.
The base course of gabion baskets is set on a prepared foundation that provides a stable, level bearing surface for the wall. On sites with soft or unstable soil, the foundation may require excavation and replacement with compacted granular fill, or a geotextile fabric layer to prevent fine soil from migrating up through the stone fill.
Gabion cages are assembled on site from flat-packed wire mesh panels, connected at the edges with tie wire or spiral binders, and placed in position for filling. Adjacent baskets are connected to each other to form a continuous wall structure that ties courses together against sliding and overturning.
Stone fill is placed into the baskets in lifts, with hand placement or mechanical placement depending on basket size and stone gradation. Fill stone is sized to be retained by the mesh opening without passing through, typically using a well-graded angular stone that packs tightly and resists movement within the basket.
Once each basket is filled to the design level, the mesh lid is closed and tied to the basket body and to adjacent baskets. Vertical connectors are installed between courses where the wall design requires them for stability.
Granular backfill is placed behind the wall in lifts and compacted to the design specification. Geotextile fabric is placed between the backfill and the native soil to prevent fine material from migrating into the backfill and reducing drainage performance.
Channel bank erosion is one of the most persistent erosion control problems on developed properties and construction sites. Stream banks that are undercut by high-flow events collapse progressively, widening the channel, depositing sediment downstream, and threatening adjacent structures and infrastructure. Loose riprap placement is the standard initial response, but on channels with high flow velocities or steep banks, riprap migrates and the bank continues to erode beneath and around the stone.
Gabion channel lining holds stone fill in a structured formation that resists displacement at flow velocities well above what loose riprap can tolerate. Gabion mattresses, which are shallow flat basket units, are used for bed and bank lining on channels where the geometry requires a flexible surface lining rather than a vertical wall structure. We size gabion channel lining to the design flow velocity and channel geometry, installing it from the channel bed up the bank face to a height above the design high water elevation.
Gabion wall installation requires attention to foundation preparation, basket assembly quality, stone fill gradation, and backfill compaction. A gabion wall built on an inadequately prepared foundation will settle unevenly and tip forward over time. Baskets that are not properly tied to adjacent units allow individual sections to bulge and separate under soil pressure. Stone fill that is too fine passes through the mesh or allows the basket face to deform under load. We address each of these details during installation because a gabion wall that is built correctly the first time does not require the costly repairs and reconstruction that a poorly installed wall eventually demands.
Rock netting combines wire mesh with stone fill or anchored rock to stabilize steep slopes and rock faces against surface erosion and shallow slope failures. On construction sites, rock netting is used on cut slopes with loose or fractured material that is prone to surface raveling, and on steep fill slopes where conventional erosion control matting does not provide adequate protection against concentrated runoff. We install rock netting systems anchored to the slope face, sized to the slope geometry and the material condition at each location.
Gabion structures are used in applications beyond erosion control and slope stabilization. Gabion fence installations use stacked basket units as property boundaries, security barriers, and landscape features on commercial and industrial properties. Gabion sound barrier fence is used along roads, highways, and industrial sites where the mass of the stone-filled structure provides sound attenuation that conventional fencing cannot achieve. We install gabion fence and barrier structures to the design dimensions and basket configuration specified for each application.
Gabion walls are low-maintenance structures compared to concrete retaining walls, but they are not maintenance-free. Wire mesh corrosion over time reduces the structural integrity of the basket system, particularly in aggressive environments with high moisture or chemical exposure. Stone settlement within baskets can cause the wall face to deform if the initial fill was not properly consolidated. We inspect gabion installations as part of our erosion control maintenance program, checking wire mesh condition, basket face geometry, and foundation conditions, and repairing or replacing sections where deterioration has reached the point of affecting structural performance.
Loose riprap and gabion baskets both use stone as the erosion control material, but they perform differently under flow and slope loading conditions. Loose riprap relies on the weight and interlock of individual stones to resist displacement. At flow velocities above the design threshold for the stone size being used, individual stones begin to move and the protective layer degrades progressively. Gabion baskets contain stone fill in a wire mesh structure that holds the formation together even when individual stones would be displaced by flow velocity alone. This makes gabion structures appropriate for higher-velocity applications where the riprap size required for a loose placement would be impractical to source or install.
A gabion wall is a gravity structure built from wire mesh baskets filled with stone, used for slope stabilization, channel lining, and retaining wall applications. The permeable structure allows water to pass through rather than building hydrostatic pressure behind the wall.
Gabion walls are flexible gravity structures that tolerate ground movement and do not require drainage systems or concrete foundations. Conventional retaining walls are rigid structures that require drainage systems, footings, and stable foundation conditions. Gabion walls are typically less expensive and more appropriate for natural and construction site erosion control applications.
Gabion basket service life depends on the wire mesh material and the site environment. Galvanized wire mesh in typical construction and drainage applications lasts decades with minimal maintenance. PVC-coated mesh extends service life further in aggressive environments with high moisture or chemical exposure.
Yes. Gabion retaining walls are used on commercial and industrial sites as a cost-effective alternative to poured concrete and block walls, particularly on sites with unstable ground conditions or where the natural stone appearance is preferred.
Stone fill gradation depends on the mesh opening size and the structural requirements of the application. Angular, well-graded stone that packs tightly within the basket is standard. We specify fill gradation based on the basket mesh size and the design flow or load conditions at each installation location.
Gabion walls are low maintenance compared to concrete retaining walls but should be inspected periodically for wire mesh condition, stone settlement, and foundation stability. We include gabion inspection in our erosion control maintenance program.
Loose riprap relies on stone weight and interlock to resist flow displacement. Gabion baskets contain stone in a wire mesh structure that holds the formation together at higher flow velocities than loose riprap of the same stone size can tolerate, making them appropriate for higher-velocity channel and slope applications.
