Commissioning ready reports for owners and integrators
Fast yes or action answers before racking or commissioning
Clear punch list with quantities and priority
Night and weekend phasing to protect throughout
One team to survey correct and validate
This division verifies floors to the specification your equipment requires and corrects what is out so commissioning stays on schedule. Very narrow aisle lift trucks need smooth steady travel. Robotics platforms and ASRS need precise approaches to rails transfer pads and handoff points. We provide survey results that are simple to act on and remediation that is sequenced to keep operations moving.
Why it matters is simple. Narrow clearances high lift heights and sensitive automation amplify small imperfections. Extra vibration shortens equipment life and increases maintenance. Irregular profiles create nuisance alarms for robotics and slow cycle times. Over time joints and edges take more impact and begin to ravel. A super flat concrete floor contractor plans the mix the placement method the finishing sequence and the curing and protection steps around the specification from day one so the delivered slab supports speed safety and uptime with less rework later.

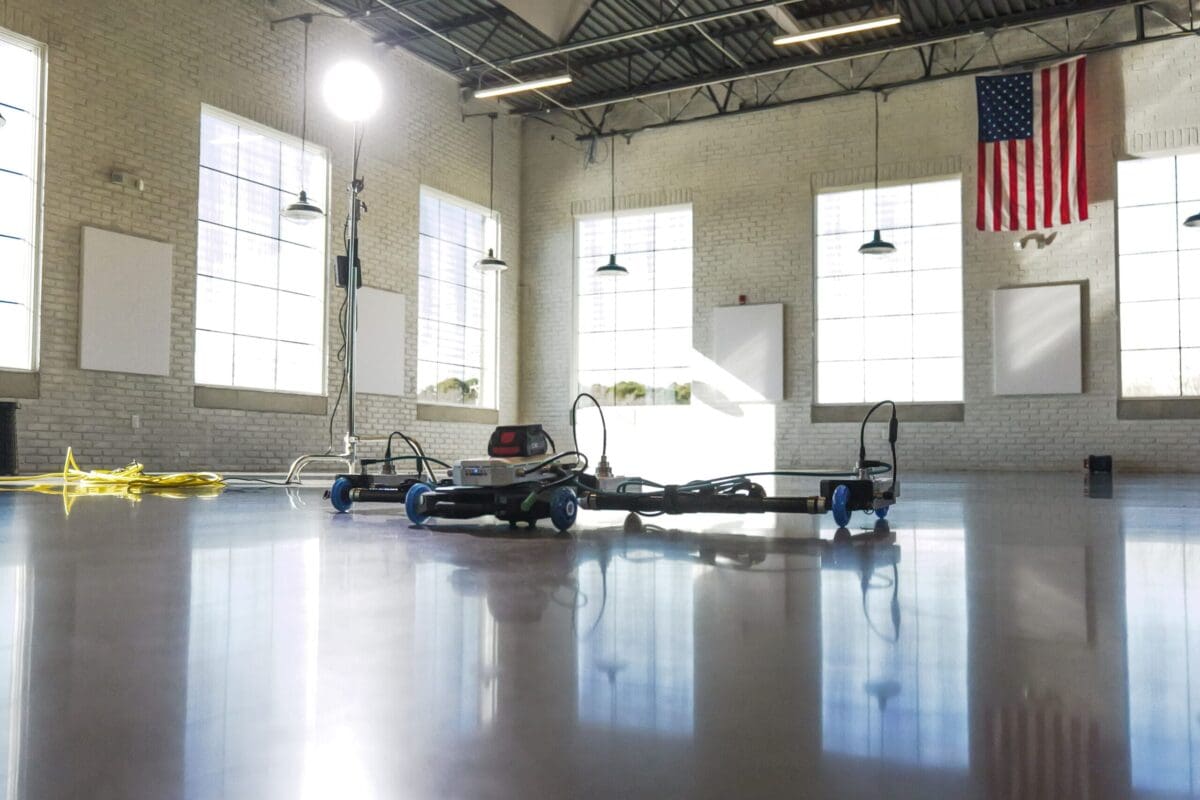

Verify to F min and bespoke robotics and ASRS specifications as well as TR34 VDMA and DIN 18202. Receive traces heat maps compliance tables and a punch list that drives action.

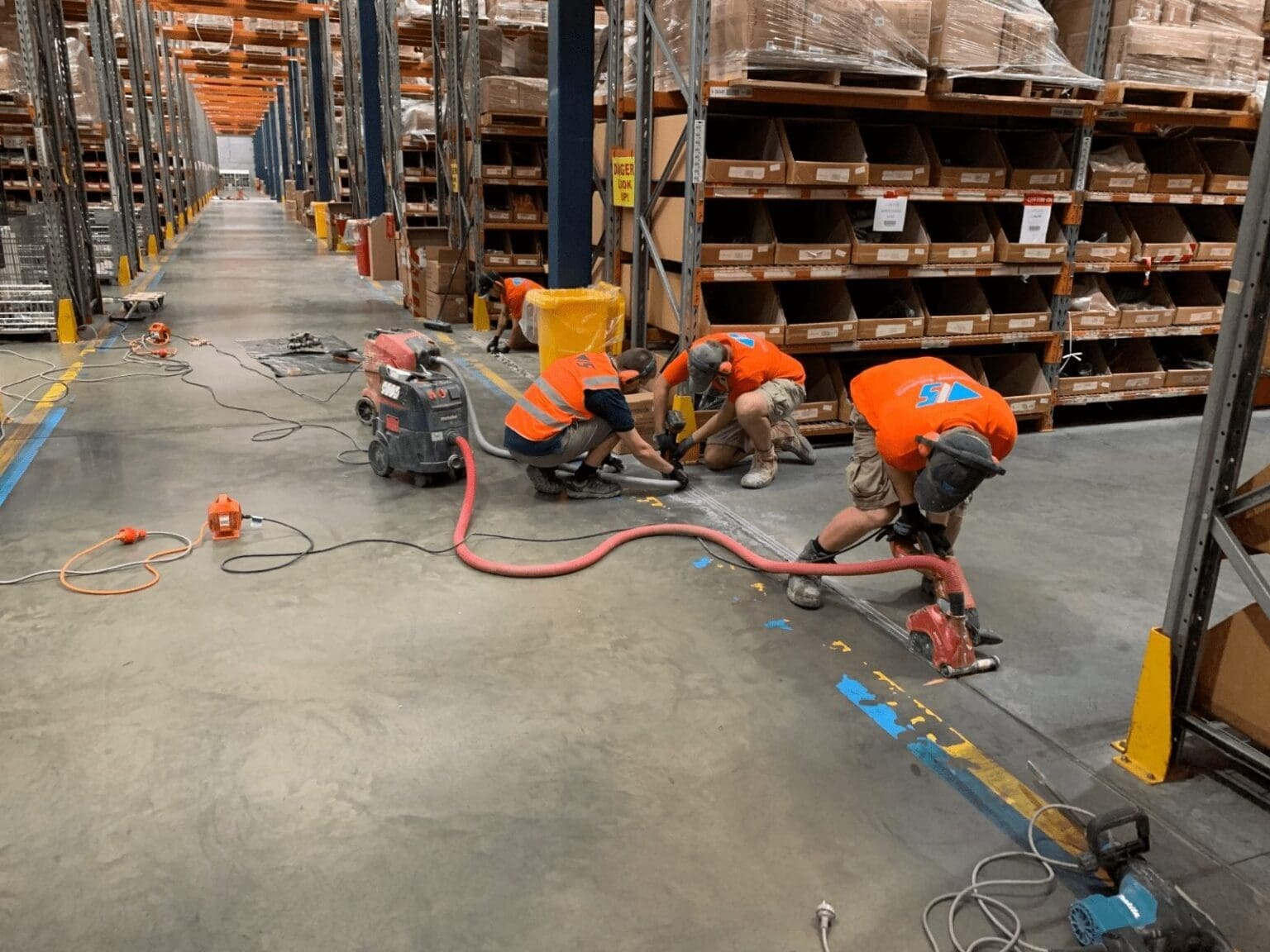

Correct exceedances with precision grinding joint and crack repair overlays slab repairs and cut out and pour back where that is more efficient. Includes a validation survey.
Defined movement aisles require targets that reflect what wheels and masts feel in motion. We verify to your specified F min values and report longitudinal and transverse results by aisle.
Bespoke robotics and ASRS specifications
Many platforms publish tolerances that do not map one to one with traditional standards. We align the survey to those exact requirements for shuttle lanes, rail approaches, transfer stations, handoff pads and pick and pack zones. Vendor names are not required.
Verification for defined movement and free movement categories with results summarized by location magnitude and linear footage.
Validation for very narrow aisle operations with commissioning ready summaries.
Checks against the specified tolerance group and span lengths with clear location based deviations and recommended corrections.
Routine FF and FL testing is not part of this division. When a project requires those checks they are typically performed on site by the contractor or by the engineering team. We coordinate as needed.
Confirm standard target values zones lift heights truck class aisle widths and access windows.
Survey lines set for clean safe access. Active areas stay open whenever possible.
Summary first then full traces tables and heat maps. Exceedances quantified with location magnitude and linear footage.
Punch list with method and quantities. Remediation phased by aisle or zone with night or weekend options.
Return survey after corrections and a sign off package for commissioning.
Choose the path you need. Surveying gives you clear data and a plan. Remediation is the physical work that brings the floor into specification followed by validation.
Work windows respect production and build schedules. Aisles and lanes are released in a sequence that limits downtime. Routes for people equipment and deliveries are planned so operations stay predictable and safe.
We phase by aisle or zone and offer night and weekend windows. The plan is built around your throughput targets.
We work from vendor requirements without listing names unless you request it.
Routine FF and FL checks are not part of this division. If the project requires them they are handled by the contractor or the engineering team. We coordinate as needed
A current plan with aisle layout target values, lift heights, and access windows, plus a safety contact.
Follow the project engineer and the curing plan. We will advise on realistic windows based on mix strength and site conditions.
Yes. We coordinate access and safe routes so the site stays productive without risking the slab.
