Commercial concrete slabs form the foundation for countless industrial, retail, and institutional facilities. These structural elements are expected to endure heavy traffic, fluctuating loads, and environmental stresses over many years.
When properly designed, installed, and maintained, a concrete slab offers exceptional stability and reliability. However, when cracks and failures appear, the consequences extend far beyond cosmetic imperfections.
Structural issues can disrupt operations, compromise safety, and lead to costly repairs or replacements. Preventing cracks and failures starts with proper design, quality materials, and skilled installation backed by consistent maintenance. Let’s how to prevent cracks and failures in commercial concrete slabs.

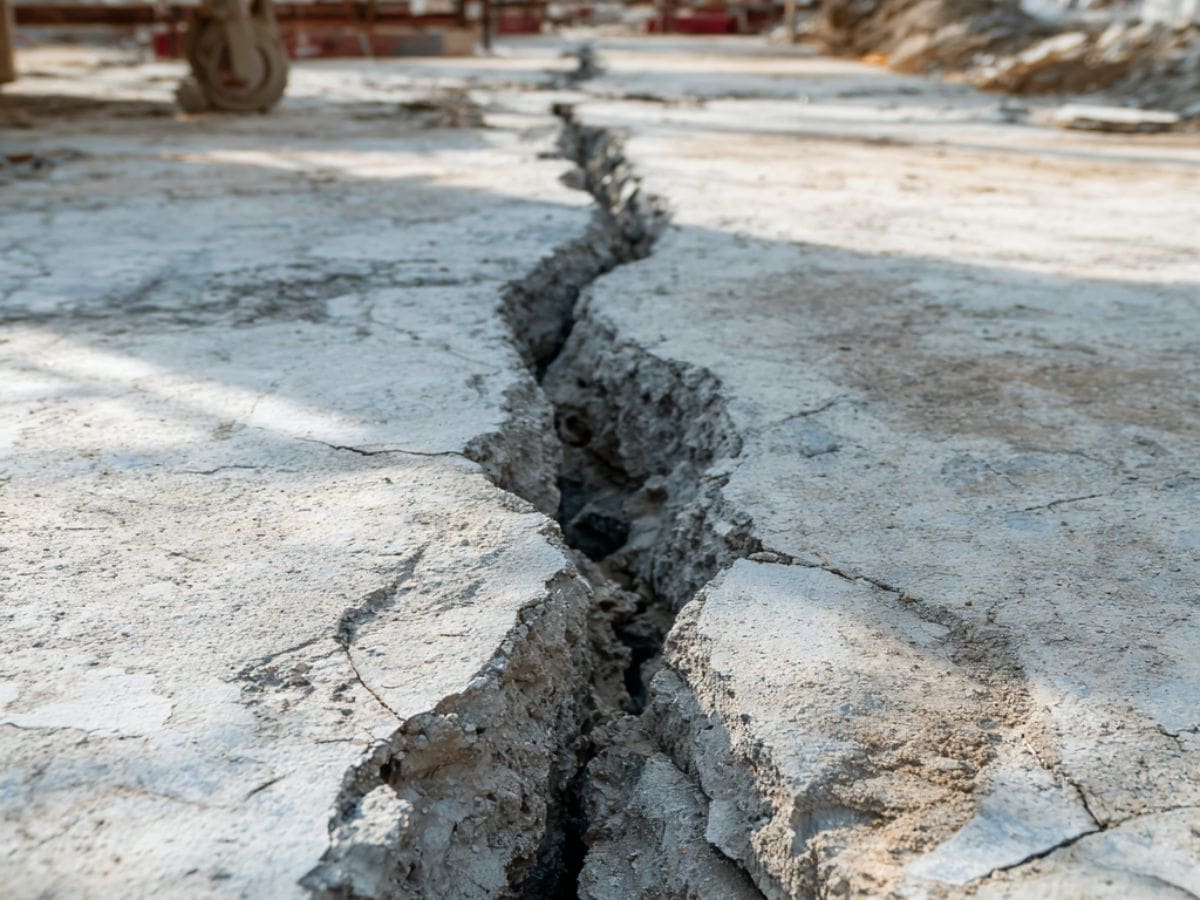

Common Causes of Cracks in Commercial Concrete Slabs
Cracking in commercial concrete slabs is often the result of multiple interacting factors rather than a single point of failure. While some minor cracking is a natural consequence of concrete’s curing process, certain patterns, sizes, and locations of cracks can indicate underlying issues that require immediate attention.
| Cause | Description | Preventive Measures |
| Shrinkage | Volume reduction during curing causes internal tension and cracking | Use proper water-to-cement ratio, add shrinkage-reducing admixtures, and install control joints |
| Overloading | Loads exceeding slab capacity cause structural failure | Design for maximum expected loads, apply load distribution reinforcements |
| Poor Soil Preparation | Uneven or unstable subgrade leads to slab settlement | Perform soil compaction and stabilization before pouring |
| Thermal Expansion & Contraction | Temperature fluctuations create stress | Incorporate expansion joints and temperature-resistant mix designs |
| Improper Curing | Rapid moisture loss reduces strength | Maintain curing for recommended duration using moisture retention methods |
-
Shrinkage During Curing
Concrete naturally shrinks as it cures and loses moisture, a process that can lead to tensile stresses within the slab. Without properly placed control joints to guide where cracks occur, this shrinkage can cause random, unsightly, and sometimes structurally significant fissures.
Mix designs with excessive water content are particularly prone to shrinkage cracking, as higher evaporation rates increase the volume change during curing.
-
Overloading and Impact Stresses
Commercial floors are designed to support specific static and dynamic loads. When actual usage exceeds these design limits, such as when heavier equipment is introduced without reinforcing the slab, cracks may form under concentrated stress points.
Repeated impact loading, such as forklift traffic over joints, can also accelerate the development of structural fractures.
-
Poor Subgrade Preparation
The stability of a concrete slab depends heavily on the condition of the soil or base material beneath it. If the subgrade is uneven, inadequately compacted, or prone to settling, differential movement can create flexural stresses that lead to cracking.
In extreme cases, voids may develop beneath the slab, leaving unsupported areas that are highly susceptible to damage under load.
-
Thermal Expansion and Contraction
Temperature changes cause concrete to expand and contract. Without sufficient expansion joints, this movement creates internal stresses that can fracture the slab.
Large, continuous slab areas, such as those found in warehouses or manufacturing plants, are particularly vulnerable if temperature fluctuations are common and joint spacing is inadequate.
-
Chemical and Environmental Damage
Exposure to harsh chemicals, de-icing salts, or freeze-thaw cycles can degrade the concrete matrix and reinforcement over time. This degradation weakens the slab’s structural integrity and can initiate cracking from the surface downward.
Protective sealers and appropriate mix designs are essential for preventing chemically or environmentally induced cracking.
The Role of Proper Design in Slab Longevity
A slab that is improperly sized, insufficiently reinforced, or poorly adapted to site conditions is far more likely to deteriorate under stress. Professional engineers should conduct a thorough analysis of anticipated loads, including point loads from heavy equipment, dynamic loads from moving vehicles, and environmental loads from temperature changes and moisture variations.
For example, a warehouse floor that supports high-rack storage systems will experience different stresses than a manufacturing plant floor exposed to continuous forklift traffic. In both cases, overestimating the slab’s capacity can be just as detrimental as underestimating it.
-
Load-Bearing Requirements and Joint Design
Joints are a critical element in preventing uncontrolled cracking. Properly designed control joints allow the concrete to contract as it cures, reducing the likelihood of random cracks. Expansion joints accommodate thermal movement, especially in large slab areas where temperature changes can cause significant expansion and contraction.
A joint plan that matches the slab’s intended use helps preserve both structural performance and visual appearance over time.
-
Climate and Environmental Considerations
Temperature fluctuations, freeze-thaw cycles, and exposure to chemicals or de-icing salts all influence slab design. In regions with harsh winters, air-entrained concrete and moisture barriers can mitigate freeze-thaw damage.
In chemical-intensive environments, selecting a concrete mix with enhanced resistance to corrosion and chemical penetration can prevent long-term degradation.
Material Selection and Quality Control
The performance of a commercial concrete slab is determined as much by the quality of its materials as by the skill of its installation. Even a flawless design will fail prematurely if substandard components are used.
Every element of the mix, from the cement binder to the smallest aggregate, must meet strict specifications to achieve the desired balance of strength, durability, and workability. It starts with selecting the right mix design for the slab’s purpose and conditions, then sourcing materials from trusted, compliant suppliers
-
Optimizing the Mix Design
A concrete mix for heavy-duty commercial use should be engineered to resist not only static and dynamic loads but also environmental stresses such as freeze-thaw cycles, moisture intrusion, and chemical exposure. The water-to-cement ratio plays a central role in determining the slab’s compressive strength and resistance to cracking.
Recommended Concrete Mix Specifications for Commercial Slabs
| Application | Compressive Strength (MPa/psi) | Water-to-Cement Ratio | Aggregate Size | Special Additives |
| Light Commercial (retail, office) | 25 MPa / 3,600 psi | 0.50 | 20 mm (3/4 in) | None or basic water reducer |
| Medium Duty (warehouses, light manufacturing) | 32 MPa / 4,600 psi | 0.45 | 20 mm (3/4 in) | Air-entrainment for freeze-thaw |
| Heavy Duty (industrial plants, freight terminals) | 40 MPa / 5,800 psi | 0.40 | 19 mm (3/4 in) | Superplasticizer, corrosion inhibitors |
Ratios that are too high create excessive porosity, making the slab vulnerable to deterioration, while overly low ratios can reduce workability and create placement challenges. The selection and proportioning of coarse and fine aggregates, along with supplementary cementitious materials like fly ash or slag, should be based on site-specific requirements and expected traffic patterns.
-
Aggregate Quality and Grading
Aggregates make up the majority of the concrete volume and directly influence the slab’s structural stability.
- High-quality aggregates are clean, well-graded, and free of contaminants such as clay, silt, or organic matter.
- Poorly graded aggregates can create voids in the hardened concrete, reducing density and increasing the risk of cracking under stress.
Using locally sourced aggregates can reduce costs, but they must still be tested for hardness, absorption, and durability to ensure long-term performance.
-
Stringent Quality Control Procedures
Material quality control does not end at procurement, it extends through batching, transportation, and placement. Consistency between batches is critical for uniform performance across the slab.
Field testing, including slump tests, air content checks, and compressive strength sampling, should be performed regularly throughout the pour. For larger projects, establishing a third-party inspection protocol can help verify compliance with design specifications and industry standards, providing an added layer of assurance that the finished slab will perform as intended.
Proper Installation Practices
Even with a precise design and premium materials, the long-term success of a commercial concrete slab ultimately depends on proper installation. Inadequate placement techniques, rushed finishing, or improper curing can introduce weaknesses that remain hidden until the slab is subjected to real-world stresses.
Professional installation is more than simply pouring concrete, it requires adherence to established construction standards, coordination between trades, and attention to detail at every stage of the process.
-
Placement and Consolidation
The placement process must ensure uniform distribution of the concrete mix without segregation of coarse and fine particles. Crews should work methodically, placing concrete as close as possible to its final location to minimize excessive handling.
Mechanical vibration is essential to consolidate the mix, eliminate air pockets, and achieve full encapsulation of reinforcement. However, over-vibration can cause aggregate settlement, leading to uneven surfaces or reduced durability.
-
Finishing and Surface Hardening
Finishing must be timed carefully in relation to the concrete’s setting phase. Beginning too early can trap bleed water beneath the surface, while starting too late can make the surface unworkable.
Skilled finishers use techniques such as screeding, bull floating, and troweling to create a smooth, level surface without compromising the slab’s internal structure. For high-traffic commercial applications, surface hardening treatments or densifiers can be applied to increase abrasion resistance and extend the service life of the slab.
-
Curing for Maximum Strength Development
Curing is one of the most overlooked yet critical steps in slab installation. Concrete gains strength through the hydration process, which requires controlled moisture retention over a sustained period.
Insufficient curing can lead to surface shrinkage, reduced strength, and increased permeability. Best practices include the use of curing compounds, wet coverings, or continuous water spray to maintain adequate moisture for at least seven days, with longer periods recommended in colder conditions.
Preventative Maintenance For Cracks and Failures in Commercial Concrete Slabs
Even the most meticulously designed and constructed commercial concrete slab will require periodic maintenance to maintain optimal performance. Environmental exposure, mechanical wear, and the natural aging of materials can all lead to gradual deterioration if left unaddressed.
A proactive maintenance program protects the structural integrity of the slab, reduces lifecycle costs, and minimizes the risk of disruptive, large-scale repairs.
-
Scheduled Inspections and Condition Assessments
Routine inspections should be conducted at intervals appropriate to the slab’s usage and environmental exposure. For high-traffic industrial floors, quarterly assessments may be warranted, while lighter-use spaces may only require semi-annual or annual checks.
Inspections should cover the full surface, joints, and load-bearing zones, identifying issues such as hairline cracks, joint sealant deterioration, spalling, or surface wear. Documenting findings over time allows facility managers to detect developing patterns and schedule preventive work before damage accelerates.
-
Timely Repairs and Joint Maintenance
Addressing minor damage promptly is far less costly than undertaking full-scale stabilization or replacement.
- Crack sealing prevents moisture infiltration that can lead to freeze-thaw damage or corrosion of embedded reinforcement.
- Replacing or resealing joint fillers ensures proper load transfer between slab sections and prevents debris infiltration, which can cause joint edges to chip and crumble.
In heavy-use facilities, joint protection systems may also be installed to absorb impact and reduce edge wear.
-
Surface Protection and Cleaning Protocols
Protective sealers or surface coatings can shield the slab from chemical attack, abrasion, and staining, especially in environments where spills, de-icing agents, or industrial byproducts are present. These treatments should be reapplied at manufacturer-recommended intervals to maintain their effectiveness.
Additionally, keeping the slab clean through regular sweeping and washing removes abrasive particles and contaminants, reducing wear and preventing surface etching. A disciplined cleaning and protection regimen extends the service life of the slab and preserves both its function and appearance.
Understanding the Cost of Slab Stabilization
Addressing cracks and structural failures in commercial concrete slabs is an investment decision that directly affects the performance, safety, and lifespan of a property. When stabilization becomes necessary, decision-makers must weigh not only the immediate expense but also the long-term financial impact of neglecting the issue.
Stabilization costs depend on damage severity, area size, and chosen method, but timely action avoids escalating expenses from deterioration or downtime. A thorough understanding of the cost of slab stabilization also allows property owners and managers to plan for maintenance within operational budgets.
Partnering with an experienced contractor can help clarify the scope of work, provide accurate cost projections, and identify solutions that balance durability with cost efficiency.
