Slabs on ground form the foundation of many structures, from warehouses to residential garages. The ACI 360R guide helps engineers, builders, and contractors understand how these slabs interact with the soil beneath them and how to design them for lasting performance.
Think of it as the engineer’s roadmap for creating concrete floors that stay stable, flat, and free of major cracking. By the end of this article, you’ll understand what ACI 360R covers, how it affects construction decisions, and why it remains the gold standard for ground-supported slab design.

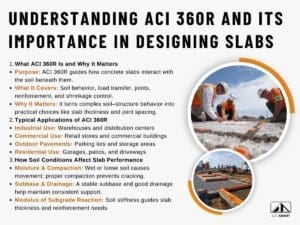

What ACI 360R Is and Why It Matters
Before any slab is poured, engineers must determine how it will behave once loads and environmental conditions come into play. That’s where ACI 360R, officially known as Design of Slabs on Ground, comes in. It provides detailed guidance on how slabs interact with the soil and how stresses distribute across the surface.
The document doesn’t serve as a code but as a comprehensive reference that complements building standards. It covers soil behavior, load transfer, joint design, reinforcement strategies, and shrinkage control. The key idea behind ACI 360R is that slabs on ground are not isolated structures; they act as part of the soil system beneath them. Understanding that relationship allows engineers to design floors that handle heavy loads without settling or cracking over time.
Contractors and designers rely on ACI 360R for a simple reason: it translates complex soil-structure behavior into practical design choices. From selecting the right thickness to spacing the joints, every decision connects back to the recommendations in this guide.
Typical Applications of ACI 360R
You’ll find ACI 360R applied in nearly every industry that uses concrete floors, including:
- Industrial warehouses and distribution centers
- Retail stores and office spaces requiring smooth, durable floors
- Parking lots and storage yards exposed to heavy loads
- Residential garages, patios, and driveways
Whether the slab supports foot traffic or forklifts, the same engineering principles apply. The design must balance soil stiffness, reinforcement, and shrinkage control to prevent damage and keep maintenance costs low.
How Soil Conditions Affect Slab Performance
No matter how strong the concrete mix is, a slab will only perform as well as the soil it rests on. ACI 360R dedicates a major portion of its guidance to evaluating and preparing the subgrade before pouring concrete.
When soil is poorly compacted, contains excessive moisture, or changes volume during wet and dry seasons, the slab above it may crack or settle unevenly. Soil properties ultimately determine how thick the slab should be and what reinforcement it needs.
Moisture and Compaction
Moisture content changes how soil behaves under load. Expansive clays swell when wet and shrink when dry, while loose sandy soils may settle too much under weight. To counter these issues, the subgrade must be compacted to the density specified by the engineer. Proper compaction strengthens the soil and prevents uneven settlement that could cause floor dips or cracks.
Subbase and Drainage
ACI 360R recommends a subbase layer between the soil and the slab. This layer, often made of crushed stone or stabilized material, provides consistent support and aids drainage. It helps reduce pumping under heavy loads and creates a level surface for construction.
Proper drainage around the building is equally critical. If water collects beneath the slab, it can soften the soil and lead to loss of support. Simple measures like sloping the ground away from the building or using perimeter drains prevent future damage.
Modulus of Subgrade Reaction
To quantify how stiff the soil is, engineers use a value called the modulus of subgrade reaction. This number measures how much the soil deflects when a load is applied. A high modulus indicates a firm base that supports heavy loads with minimal movement. Engineers use this data to determine slab thickness and reinforcement requirements.
Design Approaches Outlined in ACI 360R
ACI 360R offers several ways to design slabs on ground, depending on how much detail and precision the project demands. Each method considers load distribution, soil stiffness, and reinforcement in slightly different ways.
The key takeaway is that there is no single design method for all slabs. The right approach depends on soil type, load patterns, and performance expectations.
The Four Main Design Methods
- Design based on subgrade reaction – The simplest approach. It assumes the slab bends in response to soil pressure and distributes loads evenly. Best suited for warehouses or uniform loading conditions.
- Elastic plate theory – Treats the slab as a flexible plate that bends under load, offering more accuracy for irregular or complex loading.
- Yield line analysis – Focuses on ultimate strength and identifies potential failure paths. Used when determining the slab’s behavior at its limit.
- Reinforced slab design – Uses distributed or concentrated steel reinforcement to control cracks and carry heavier loads.
Comparison of Design Methods in ACI 360R
Table: Comparison of Design Methods in ACI 360R
| Method | Best Use Case | Key Strength | Typical Limitations |
| Concrete relies on soil stiffness | Warehouses and facilities with uniform wheel loading | Simple to apply; effective when soil properties are well defined | Limited accuracy for complex or variable loads |
| Elastic plate theory | Floors with irregular or concentrated loading patterns | Provides realistic stress and bending distribution | Requires more data and analytical effort |
| Yield line analysis | Scenarios needing ultimate strength design or failure prediction | Helps identify critical crack lines and collapse patterns | Less suitable for everyday service-level design |
| Reinforced slab method | Heavy-duty industrial or manufacturing floors | Offers superior crack control and higher load capacity | More material cost and time-intensive to install |
Each method provides valid results when used under the right conditions. What matters most is that the chosen approach reflects actual site data rather than assumptions.
Planning Joints, Reinforcement, and Shrinkage Control
Even a well-designed slab can fail if the detailing is overlooked. Joints, reinforcement, and shrinkage control play major roles in long-term performance. ACI 360R offers clear recommendations on how to balance these factors.
Joint Layout and Spacing
Joints allow concrete to expand, contract, and relieve stress caused by temperature and moisture changes. Without them, cracks appear randomly. Joint spacing is typically determined by the slab thickness, reinforcement level, and anticipated shrinkage. Properly planned joints guide cracking in a controlled way, keeping it narrow and manageable.
For example, a 6-inch thick slab may need joints spaced between 12 and 15 feet apart. In industrial settings, dowel bars are often added across the joints to transfer loads between panels while allowing horizontal movement.
Reinforcement Options
Not every slab needs reinforcement, but where it’s used, the placement and type of steel matter. Common reinforcement choices include:
- Welded wire fabric (WWF) – Provides uniform crack control across large areas.
- Deformed steel bars – Used in high-load zones or along column lines.
- Synthetic or steel fibers – Reduce shrinkage cracking and improve toughness.
Reinforcement does not prevent cracking entirely but keeps cracks tight and prevents differential movement that would damage the surface.
Shrinkage and Curling
Concrete naturally shrinks as it dries. If the top of the slab dries faster than the bottom, it can curl upward at the edges. This leads to joint faulting or rocking panels under loads. To limit curling, contractors use moisture-retaining curing methods, balanced reinforcement, and proper joint design.
Construction Quality
Even the most carefully calculated design can fail without good workmanship. ACI 360R highlights best practices such as:
- Uniform subbase thickness and compaction
- Correct concrete mix selection for climate and exposure
- Timely saw-cutting of joints
- Proper curing and moisture control
These practical measures ensure that the theoretical design translates into durable results on site.
Field Considerations and Quality Control
Designers often rely on lab data, but real-world conditions can differ significantly. Construction timing, weather, and material variability all influence slab performance.
Monitoring field conditions during and after construction is essential for long-term stability. Moisture testing, compaction checks, and joint inspection help confirm that the work meets design intent. ACI 360R also recommends keeping detailed records of concrete delivery, placement times, and finishing methods for quality assurance.
Routine inspections after occupancy ensure that early warning signs like minor cracks or differential settlement are addressed promptly. The cost of regular maintenance is much lower than large-scale slab repairs.
Understanding the Cost of Slab Stabilization
Slab stabilization refers to the process of restoring or improving support beneath a slab that has begun to settle or lose contact with the ground. It’s often required when voids form under the slab or when uneven settlement appears.
Repair costs can vary widely depending on the size of the affected area, the depth of the voids, and the method used. Addressing stabilization early is far more economical than waiting until the damage spreads.
Common Stabilization Methods
- Pressure Grouting: Involves injecting cementitious grout beneath the slab to fill voids and restore support.
- Polyurethane Foam Injection: Expanding foam lifts the slab and fills gaps with minimal downtime.
- Soil Stabilization or Replacement: In severe cases, weak soil is removed or chemically treated to improve bearing capacity.
Factors That Influence Cost
- Slab thickness and total area to be repaired
- Accessibility of the repair site
- Type of stabilization material chosen
- Degree of soil weakness or moisture damage
- Time required for curing or setting
For residential driveways or garage floors, costs might range from a few hundred to a few thousand dollars. Industrial facilities often spend more due to scale and downtime considerations.
Preventing Future Issues
Preventing soil movement is always less expensive than repairing it. Good drainage, proper site grading, and consistent moisture control around the foundation go a long way toward preserving slab stability. Annual inspections also help detect subtle settlement before it becomes visible or hazardous.
Understanding slab stabilization costs brings the entire ACI 360R framework full circle. The document isn’t just about initial design it’s about ensuring that slabs continue to perform as intended throughout their lifespan.
As a natural next step, exploring soil improvement and moisture management techniques can further enhance the performance of new and existing slabs, making future stabilization less likely and preserving structural integrity for decades.
Conclusion
Designing reliable slabs on ground begins long before concrete is poured. ACI 360R gives engineers and contractors a practical framework for understanding soil behavior, choosing the right design method, and managing joints, reinforcement, and shrinkage.
When these elements work together, slabs remain stable, durable, and cost-effective throughout their service life. The guide also highlights the importance of quality construction practices and proactive maintenance, helping prevent long-term issues like settlement or void formation.
Ultimately, ACI 360R empowers project teams to design floors that perform well under real-world conditions, reducing repair costs and extending the lifespan of the entire structure.
