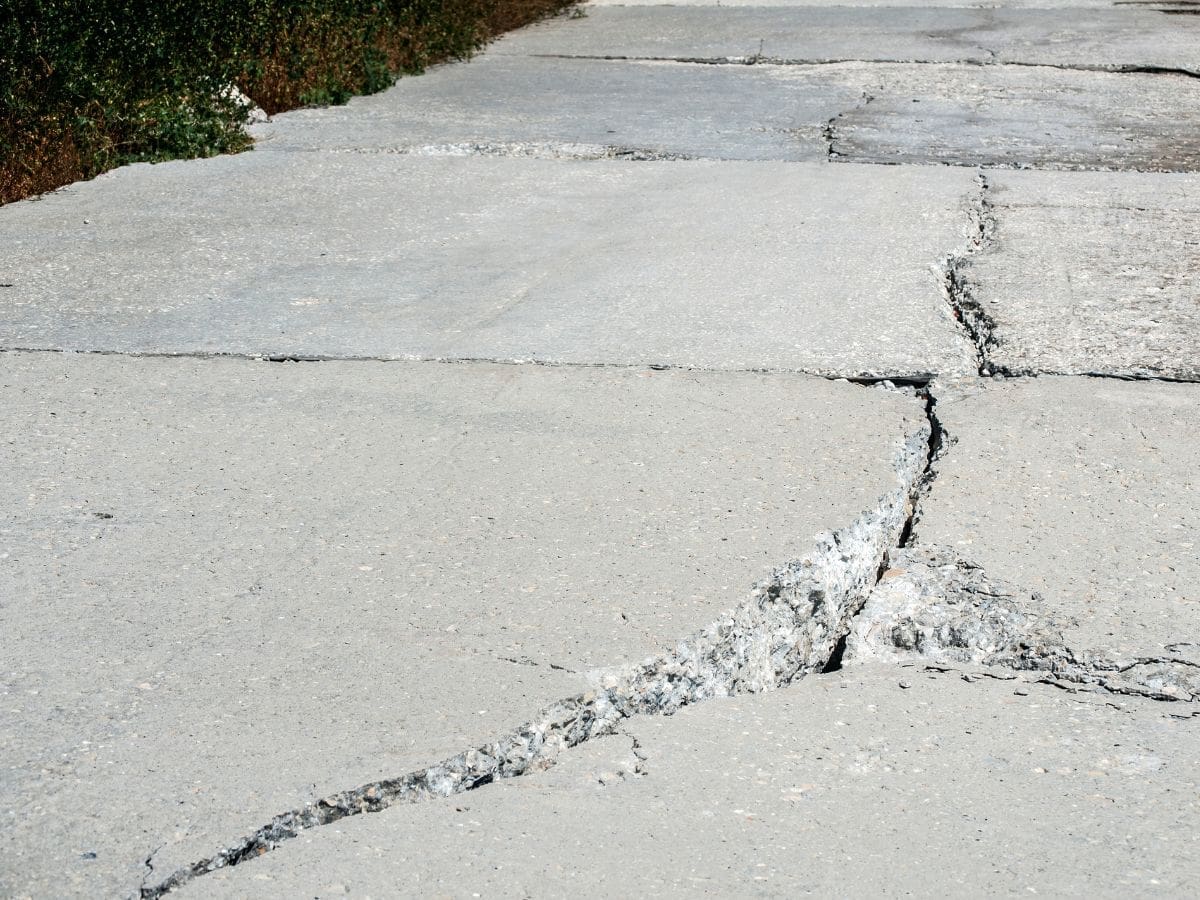

Moving slabs can lead to serious concrete joint issues, including spalling, cracking, and uneven surfaces. Addressing this movement early is essential to maintaining the integrity of your concrete structures, minimizing repair costs, and avoiding unnecessary lift equipment damage.
Understanding the costs associated with filling these voids is crucial for making informed decisions. Concrete replacement can cost anywhere from $50 to $150 per square foot, depending on the specifics of the project.
This guide explores the causes of voids, compares the most common slab stabilization methods, and highlights the advantages of hiring professionals over attempting DIY repairs.

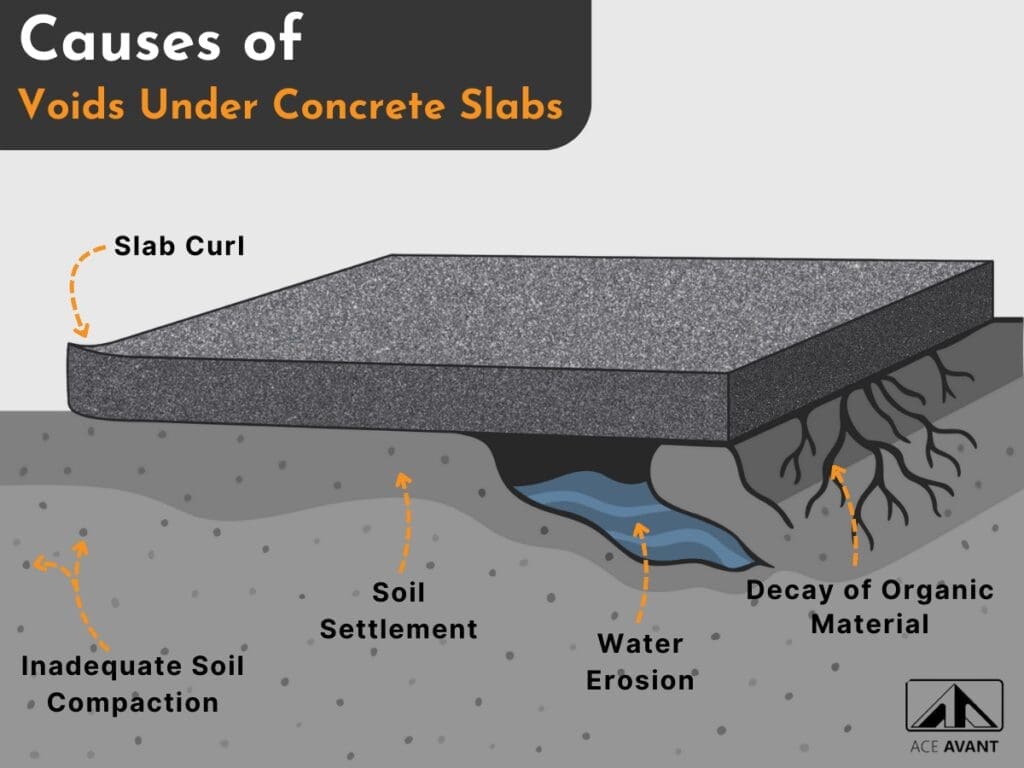

Causes of Voids Under Concrete Slabs
Several factors contribute to the formation of voids under concrete slabs. The most common causes include slab curl at joints, inadequate soil compaction, soil settlement, erosion, or the decay of organic matter.
| Cause | Description |
| Slab Curl | Curling at joints from moisture imbalance, especially in new or unreinforced slabs. |
| Inadequate Soil Compaction | Poorly compacted subgrade fails to support the slab, leading to settling. |
| Soil Settlement | Natural movement of soil over time due to weak compaction or poor preparation. |
| Water Erosion | Drainage issues or groundwater movement washes away base materials. |
| Decay of Organic Material | Decomposed roots or vegetation leave behind hollow spaces under slabs. |
- Slab Curl
It is common that newly installed floors experience curling at the joints, especially at unreinforced intermediate saw cuts. As the slab curls, a void forms underneath, leading to deterioration such as cracks and spalling as lift traffic increases.
This issue is a common occurrence in many facilities and addressing it within the first 1 to 2 years can prevent costly repairs later.
- Inadequate Soil Compaction, Soil Settlement, Erosion, or Decay of Organic Matter
The ground beneath a concrete slab plays a critical role in long-term stability.
- Inadequate compaction beneath the slab during construction can result in joint deterioration.
- Soil settlement occurs naturally over time or due to poor subgrade preparation.
- Water erosion from drainage problems or groundwater movement can wash away base material.
- Organic matter, like decomposed roots or buried vegetation, can break down and leave air pockets under the slab.
If these voids are confirmed through geotechnical exploration, slab stabilization methods such as polyurethane foam injection may be suitable. In some severe cases, removing and repouring panels after replacing and compacting the sub-base may be the best long-term solution where floor panels have been damaged.
Methods for Filling Voids
The stability of the entire surface depends on how voids are filled and reinforced. Below are the most common approaches used in slab stabilization, each offering distinct benefits depending on the demands of the project.
- Polyurethane Foam Injection
Polyurethane foam injection is a widely used modern method for filling voids and stabilizing concrete slabs. This process involves injecting high-density foam that expands to fill the void and lift the slab.
- Small holes (typically ⅝” to ¾”) are drilled in the concrete surface.
- A nozzle is inserted into the holes, and polyurethane foam is injected.
- The foam expands rapidly, stabilizing and supporting the slab.
- Once complete, the holes are patched with industrial epoxy concrete repair compounds.
Advantages of Polyurethane Foam Stabilization
Polyurethane foam injection offers numerous benefits compared to traditional methods:
- Cleaner application: Requires minimal cleanup and causes less mess on-site.
- Resistant to erosion: The foam is not water-soluble, making it less prone to washout.
- Lightweight material: Reduces the risk of future settlement.
- Smaller drill holes: Less invasive to the existing concrete.
- Mud jacking (Also Known as Slurry Grouting)
Some companies may offer mud jacking as an alternative method. Mud jacking involves pumping a cement-based slurry into voids beneath the slab through larger drilled holes (often 1” to 2” in diameter).
While it may be less expensive upfront, it has limitations in terms of weight and long-term durability costing much more long term.
- Heavier material: The slurry is significantly heavier than polyurethane foam, which may contribute to additional settlement over time, especially in weak subgrades.
- Larger holes required: Can result in a more noticeable patching footprint.
- Susceptible to erosion: Unlike polyurethane, slurry may be vulnerable to future washout if moisture problems persist.
Advantages of Mud Jacking
While less commonly used today, mud jacking still presents a few advantages in specific scenarios:
- Lower initial cost: Generally more affordable than polyurethane foam for smaller projects.
- Effective for large voids: Capable of filling broader or deeper gaps under concrete slabs.
- Widely available service: Many contractors are familiar with the technique and can perform it with standard equipment.
- Sustainable materials: Utilizes natural, cement-based mixtures that are less chemically intensive.
- Proven method: Has been used for decades in residential and commercial applications.
Cost Considerations
The cost to fill voids under a concrete slab can vary widely depending on:
| Factor | Impact on Cost |
| Extent of Voids | Larger voids need more material and time, increasing cost. |
| Slab Size | Bigger surface area raises both labor and material costs. |
| Accessibility | Hard-to-reach or obstructed locations may need extra equipment or time. |
| Soil Conditions | Poor soil stability may require more extensive preparation or foam use. |
| Chosen Method | Polyurethane is more expensive initially, but offers greater longevity. |
- Extent of the voids: Larger voids require more material and labor.
- Slab size: Bigger areas increase material and time requirements.
- Accessibility: Hard-to-reach areas or slabs with obstructions may cost more due to increased labor.
- Chosen method: Polyurethane foam injection generally costs more than mud jacking but may provide greater long-term performance and value.
Typical Price Ranges
Understanding the cost breakdown of slab stabilization methods can help you plan more accurately and avoid unexpected expenses. While prices vary depending on several site-specific factors, there are general cost ranges that serve as a useful benchmark for comparing options.
- Polyurethane foam injection: Typically ranges from $5 to $25 per square foot, depending on depth and accessibility.
- Mud jacking: May cost $3 to $10 per square foot, but may not be suitable for all soil conditions or slab thicknesses.
| Method | Drill Hole Size | Material Weight | Erosion Resistance | Durability | Cost (Est.) |
| Polyurethane Foam | ⅝” to ¾” | Lightweight | Excellent | High – long-lasting | $5–$25 per sq. ft. |
| Mud Jacking (Slurry) | 1” to 2” | Heavy | Moderate–Low | Moderate–may settle | $3–$10 per sq. ft. |
While foam injection may require a higher initial investment, its durability and reduced risk of future settlement can make it more cost-effective in the long term.
Benefits of Hiring a Professional Concrete Repair Company
Hiring a professional ensures that the repair is completed correctly and effectively the first time. Here are some of the advantages:
Expertise in Assessment and Execution
Trained technicians can accurately identify the source of voids and recommend the most suitable solution. Whether polyurethane foam or another method is ideal, a proper diagnosis ensures the root cause is addressed.
Access to Specialized Equipment and Materials
Professionals use commercial-grade materials and equipment that aren’t available to the general public. Their experience allows them to apply these solutions efficiently, minimizing disruptions to business operations.
Warranties and Service Guarantees
Most reputable companies offer service warranties that cover future settling or voids within a certain period. This provides added peace of mind and protects your investment.
Conclusion
Filling voids under concrete slabs is essential for preserving structural stability, improving safety, and preventing further damage. While some companies still offer traditional mud jacking, many now rely on polyurethane foam stabilization for its durability, efficiency, and cleaner application.
Choosing the right method depends on the size of the slab, soil conditions, accessibility, and long-term goals. Working with an experienced concrete repair company ensures the use of proper techniques, high-quality materials, and a reliable assessment of the situation.
Proactive slab stabilization helps prevent uneven surfaces, joint failure, and expensive structural repairs—saving you time and money over the lifespan of your concrete surfaces.
