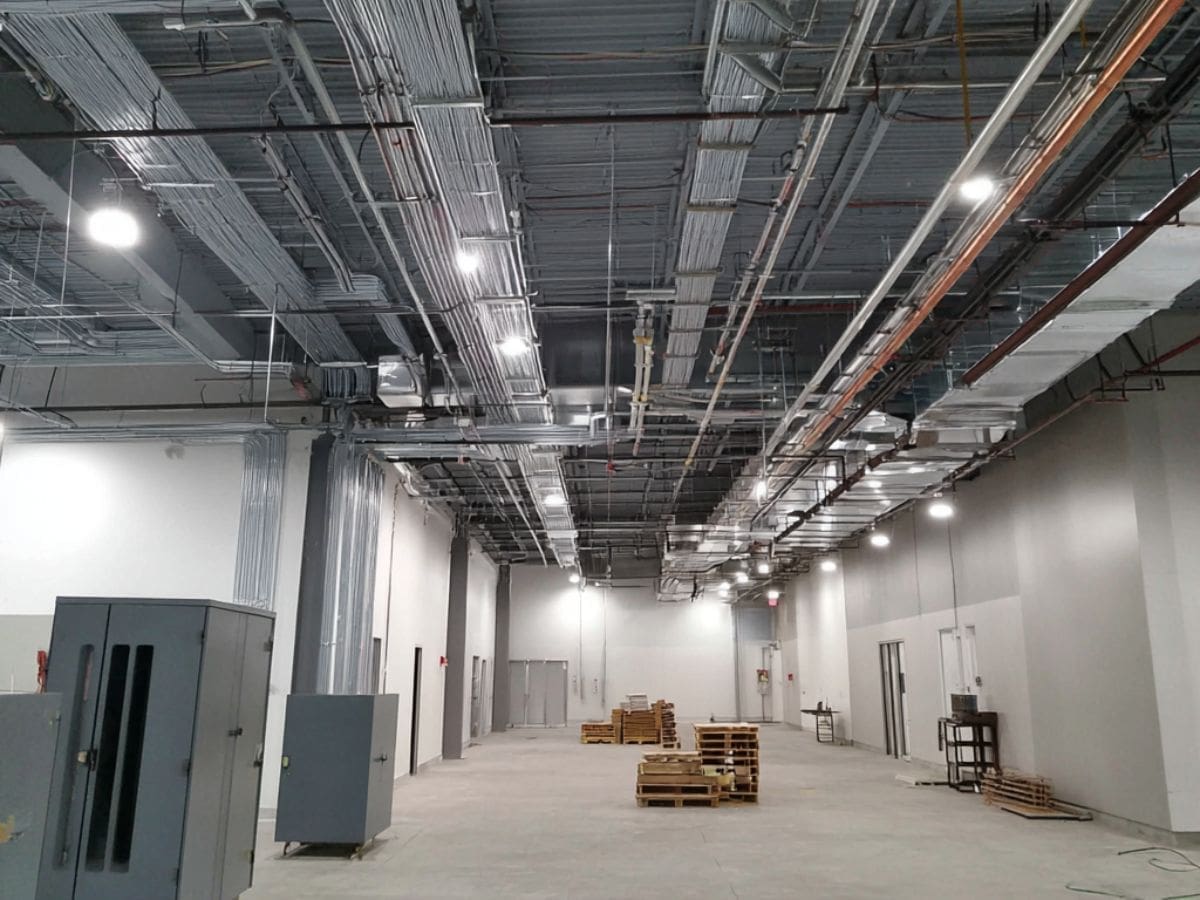

A commercial or industrial conduit system is the backbone of a facility’s power and control infrastructure, protecting circuits while allowing for long-term system changes. Material choice affects performance, with rigid metal conduit suited for high-traffic areas and electrical metallic tubing offering a cost-effective option for dry interior spaces.
Installation quality affects long-term maintenance costs because Poor installation increases long-term maintenance by adding labor during wire pulls and future changes. For this reason, proper routing and pull point placement should be considered during the design phase rather than corrected later in the field.
In commercial and industrial environments, the margin for error is significantly smaller than in residential work. Every connection, support, and termination must meet code requirements while also accommodating the facility’s operational demands. Let’s look at conduit installation best practices for commercial and industrial projects.
1. Plan the Route Before the First Bend
Route planning determines the efficiency of wire pulls and the accessibility of the system for future modifications. A conduit path conceived without field verification often collides with structural elements or other trades, leading to costly field revisions.
The planning phase must account for bend counts, pull point spacing, and the physical constraints of the building itself.
Walk the Site to Identify Conflicts
A thorough site walk establishes the conduit path before any material arrives. Structural steel, overhead crane rails, and existing mechanical systems dictate available space.
Overlooking a chiller line or fire suppression main forces last-minute reroutes that add labor and material waste. The walk identifies these conflicts early when changes require minimal disruption.
Map Pull Points for Wire Management
Long conduit runs require intermediate pull points to keep tension within safe limits for the conductor insulation. Pull boxes or conduit bodies placed at strategic intervals reduce the cumulative effect of bends.
A run exceeding 360 degrees of total bend between pull points exceeds code limits and makes wire installation impractical. Positioning these access points at corners and long straight sections provides future flexibility for circuit alterations.
Account for Thermal Expansion and Contraction
Conduit installed across rooftops or in unconditioned warehouse spaces experiences significant length changes with temperature swings. Rigid metal conduit expands approximately 1 inch per 100 feet for every 40-degree Fahrenheit change.
Expansion fittings accommodate this movement without placing stress on enclosures or support structures. A system locked in place without these fittings can buckle or pull connections apart as temperatures shift.
2. Choose the Right Materials for the Environment
Material selection must align with the physical conditions of the installation location. Corrosive atmospheres, exposure to physical damage, and indoor versus outdoor placement each demand different conduit types.
A mismatch between material and environment leads to premature failure and unsafe conditions.
Use Rigid Metal Conduit for High-Impact Areas
Rigid metal conduit provides the highest level of mechanical protection among standard wiring methods. Its threaded connections create a continuous grounding path and resist separation under stress.
Loading docks, vehicle traffic zones, and exposed areas at grade level require this level of protection. Thin-wall alternatives in these locations cannot withstand the impact forces present in industrial environments.
Select EMT for Dry Interior Spaces
Electrical metallic tubing offers a balance of cost and performance for commercial interiors. Its lightweight construction allows faster installation than threaded rigid conduit.
Office spaces, retail areas, and conditioned mechanical rooms suit EMT applications. The conduit requires proper supports and cannot serve as a grounding path if fittings loosen over time.
Choose PVC for Underground and Corrosive Conditions
PVC conduit resists chemical attack from acids, alkalis, and salts that degrade metal systems. Its non-conductive nature eliminates galvanic corrosion concerns when in contact with dissimilar materials.
Direct burial applications benefit from PVC construction, though the material requires careful handling in cold temperatures. Support spacing for PVC must account for sagging when exposed to heat during summer months.
Match Fittings and Supports to the Conduit Type
Fittings must match the conduit material and the specific application conditions. Set-screw fittings serve dry interior locations while compression fittings provide better moisture exclusion in damp spaces.
Transition fittings between dissimilar metals prevent galvanic corrosion at connection points. A steel fitting threaded directly onto aluminum conduit initiates electrolytic action that compromises the connection over time.
3. Master the Art of Bending
Bending accuracy determines how conduits align on racks and how easily wire pulls proceed. A bend that deviates from the intended angle by even a few degrees creates alignment issues across multiple parallel runs.
The quality of each bend also affects the internal space available for conductors.
Measure from the Bend Point
Measurements taken from the end of the conduit without accounting for the bending radius produce inconsistent stub-up heights. The take-up measurement varies by bender type and conduit size.
Marking the conduit at the correct point before inserting it into the bender eliminates guesswork. A consistent method across all bends in a rack produces uniform results.
Maintain Consistent Radii Across Parallel Runs
Parallel conduits following the same path require identical bend radii to remain aligned on supports. A tighter radius on one conduit forces it to diverge from the group.
Using the same bender type for all conduits in a rack maintains this consistency. Field modifications that introduce mismatched bends create crossings that complicate support placement.
Avoid Flattening or Kinking the Pipe
A bend that flattens reduces the cross-sectional area available for conductors. This reduction increases friction during wire pulls and can damage insulation at the point of deformation.
Proper bender selection and technique prevent this issue. Conduit that shows visible flattening or wrinkling at the bend should be replaced before installation proceeds.
4. Instal a Solid Support System
The support system bears the full weight of the conduit, conductors, and any external forces applied during maintenance activities. Inadequate supports allow sagging over time, which places stress on terminations and creates unintended low points where moisture collects.
Proper support spacing and attachment methods ensure the system remains stable throughout its service life.
Use Strut and Hardware Rated for the Load
Unistrut and similar channel systems provide a versatile framework for mounting multiple conduits in a single rack. The strut material must match the conduit material to prevent galvanic corrosion in wet environments.
Stainless steel strut carries a higher initial cost but eliminates corrosion concerns in chemical plants or food processing facilities. Standard carbon steel strut requires proper coatings and should not be used in areas with repeated moisture exposure.
Follow Code Support Spacing Requirements
Support spacing intervals are defined by conduit type and trade size. Exceeding these intervals allows the conduit to deflect under its own weight and the weight of the conductors.
A sagging conduit creates stress at couplings and bends. Additional supports beyond the minimum requirement improve system rigidity and reduce long-term deflection.
Attach to Building Structure Directly
Conduit supports must connect to structural elements capable of bearing the load. Suspended ceilings, ductwork, and plumbing pipes do not provide adequate attachment points.
Beam clamps, threaded rod anchored to structural steel, and concrete anchors serve as proper attachment methods. Each support point should be evaluated for its connection to the primary building structure.
5. Think About Grounding and Bonding
The conduit system serves as an equipment grounding conductor in many installations, but only when continuity is maintained across every connection. Loose locknuts, plastic bushings, and corroded fittings interrupt this path and create a safety hazard.
Proper bonding techniques ensure fault currents return to the source without impedance.
Maintain a Continuous Ground Path
Metal conduit relies on tight mechanical connections to establish electrical continuity across the entire run. Each coupling, connector, and locknut must be wrench-tight to provide a low-impedance path.
Paint, coatings, or debris at termination points can insulate the conduit from the enclosure. A simple visual inspection often misses these conditions, but a continuity test confirms the integrity of the path.
Use Bonding Bushings at Enclosures with Knockouts
Concentric or eccentric knockouts in enclosures do not provide a reliable grounding path after the knockout is removed. The remaining metal ring often has insufficient contact area for fault current.
A bonding bushing with a jumper wire bridges the conduit to the enclosure and bypasses the compromised knockout. This practice applies to service equipment and any enclosure where the standard locknut alone does not guarantee continuity.
Pull a Separate Ground for Non-Metallic Systems
PVC conduit does not conduct electricity and cannot serve as an equipment grounding conductor. A copper grounding conductor must be installed inside the conduit alongside the phase conductors.
The size of this grounding conductor follows the same rules as any equipment grounding conductor based on the overcurrent protection device. Relying on a metallic water pipe or building steel as the sole ground path through PVC violates code requirements.
6. Managing Pull Points and Boxes
Pull points provide access to conductors for installation and future circuit modifications. A system designed without adequate pull points forces difficult wire pulls that risk insulation damage.
Boxes placed at strategic locations reduce labor time and allow for circuit changes without dismantling long conduit runs.
Locate Pull Boxes at Corners and Long Runs
Every change in direction adds friction to the wire pull. Placing a pull box at a corner converts a single continuous pull with multiple bends into two shorter pulls with fewer bends.
Long straight runs also benefit from intermediate pull boxes. A run exceeding 100 feet without a pull point creates tension levels that exceed manufacturer recommendations for conductor pulling.
Size Boxes for Conductor Clearance
A pull box must provide sufficient interior space to accommodate the bending radius of the largest conductor. Undersized boxes force conductors into tight bends that stress the insulation.
The code specifies minimum dimensions based on conduit size and conductor arrangement. Exceeding these minimums improves working space and reduces the risk of damage during wire installation.
Keep Boxes Accessible After Construction
Pull boxes and junction boxes cannot be concealed behind permanent finishes. A box buried behind drywall or above a fixed ceiling with no access panel becomes unusable for future work.
Accessibility requirements apply throughout the life of the building. Field changes during construction that relocate boxes should be documented so access is maintained after other trades complete their work.
How to Prevent Cracks and Failures in Commercial Concrete Slabs
A conduit system installed with careful planning, proper material selection, and correct techniques can operate reliably for the life of a facility. Each connection, support, and bend either reinforces the system’s integrity or introduces potential failure points.
The principles used in conduit installation mirror those in other critical building systems. For example, a concrete slab requires proper reinforcement, correctly spaced control joints, and a prepared subgrade to resist cracking under load.
Shortcuts in either trade create hidden weaknesses that emerge after construction is complete. Discipline in field verification, adherence to specified materials, and attention to installation conditions ensures systems perform as designed and avoid recurring maintenance issues.
