Concrete underpinning is a structural reinforcement technique used to strengthen and stabilize existing foundations. Over time, buildings may experience foundation issues due to soil movement, increased structural loads, or environmental factors.
Underpinning involves extending the foundation’s depth or adding additional support to prevent further instability. This process is essential for maintaining a building’s safety, longevity, and compliance with modern construction standards.
This article covers when concrete underpinning is needed, common techniques, the process, and the importance of professional expertise. Understanding these aspects helps property owners make informed foundation repair decisions.
What Is Concrete Underpinning
Concrete underpinning is a construction method used to strengthen and stabilize existing foundations by extending their depth or repairing structural weaknesses. This process involves excavating sections beneath the foundation and pouring concrete to create a stronger support system. It is commonly used when a building’s foundation has become unstable due to soil movement, poor initial construction, or increased structural loads.
This technique is especially beneficial for buildings affected by subsidence, foundation cracks, or renovations requiring additional support. Concrete underpinning can be performed using traditional mass concrete underpinning, beam and base underpinning, or mini-piled underpinning, depending on the project’s needs. It ensures long-term stability, preventing further foundation failure and preserving the integrity of the structure.
When is Concrete Underpinning Needed
Concrete underpinning is required when a building’s foundation becomes weak, unstable, or unable to support the structure adequately. Various factors, such as soil movement, structural modifications, or external environmental changes, can necessitate underpinning to restore stability and prevent further damage.
1. Foundation Settlement or Movement
If a foundation begins to sink, shift, or settle unevenly due to soil erosion, poor compaction, or changes in moisture levels, underpinning helps restore structural integrity. Common warning signs include cracks in walls, sloping floors, and misaligned doors or windows.
2. Increased Structural Load
When modifications like adding extra floors, installing heavy machinery, or extending the building footprint occur, the original foundation may not be strong enough to support the additional weight. Concrete underpinning reinforces the foundation, ensuring it can handle the increased load without failure.
3. Soil Conditions Changing Over Time
Foundations rely on stable soil for support, but changes due to drought, excessive rainfall, or nearby construction can weaken the ground. Underpinning strengthens the foundation by transferring the load to deeper, more stable soil layers.
4. Existing Foundation Damage
Aging buildings, poor construction techniques, and environmental factors such as earthquakes or flooding can cause foundation cracks and instability. Concrete underpinning repairs and reinforces the existing foundation, preventing further deterioration and potential collapse.
5. Water Damage or Poor Drainage
Prolonged exposure to water due to poor drainage, leaking pipes, or flooding can weaken soil and erode foundation support. Underpinning helps counteract the effects of water damage by reinforcing the foundation and improving drainage solutions.
6. Nearby Excavation or Construction
Construction work near an existing building, such as digging for basements, tunnels, or road expansions, can destabilize surrounding soil and impact foundations. Underpinning is used to strengthen and secure affected foundations before damage occurs.
7. Code Compliance or Retrofitting
Older buildings may not meet modern safety and building code requirements. Underpinning is sometimes necessary to upgrade foundations, ensuring compliance with current regulations and improving long-term durability.
By addressing these foundation issues promptly with concrete underpinning, property owners can prevent severe structural failures and costly repairs. Consulting a professional engineer or foundation specialist is crucial to determining the most suitable underpinning solution for each specific case.
Common Underpinning Techniques
Underpinning techniques are used to strengthen and stabilize existing foundations that have become weak or unstable due to soil conditions, structural changes, or environmental factors. Several methods are available, each suited to different situations and structural needs.
Mass Concrete Underpinning (Pit Method)
This traditional method involves excavating small, rectangular pits beneath the existing foundation in a staggered sequence. Concrete is then poured into these pits, forming new footings that extend to a stable soil layer. This method is suitable for shallow foundations and relatively stable soil conditions.
Mini-Piled Underpinning
This technique utilizes small-diameter, reinforced concrete piles driven or screwed into the ground beneath the existing foundation. These piles transfer the building’s load to deeper, more competent soil layers. Mini-piled underpinning is ideal for situations where access is restricted or where very deep foundations are required.
Beam and Base Underpinning
This method involves constructing a reinforced concrete beam beneath the existing foundation wall. Concrete bases are then poured at strategic intervals along the beam to provide additional support. This technique is often used to address localized settlement or to strengthen foundations supporting heavy loads.
Jet Grouting
This method involves injecting a high-velocity jet of grout into the soil beneath the foundation. The grout mixes with the surrounding soil, creating columns of stabilized material that provide additional support. Jet grouting is particularly useful for consolidating loose or weak soils.
Expanding Resin Injection
This newer technique involves injecting expanding polyurethane resin into the ground beneath the foundation. The resin expands, filling voids and compacting the soil, effectively lifting and stabilizing the foundation. This method is less invasive than traditional underpinning methods.
Choosing the right underpinning technique depends on factors such as soil conditions, structural requirements, and project budget. Proper underpinning ensures the stability and longevity of a building, preventing further foundation issues.

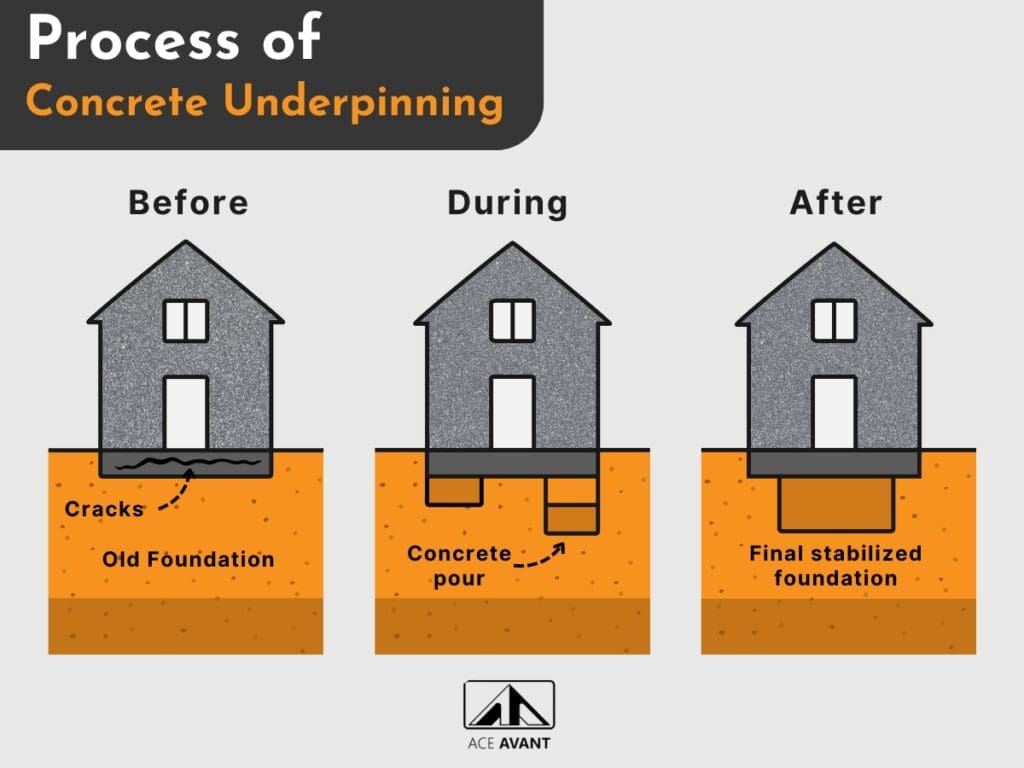

The Concrete Underpinning Process
The concrete underpinning process involves strengthening an existing foundation by extending its depth or reinforcing its stability. This step-by-step procedure ensures that the structure remains secure and supported, preventing further foundation issues.
1. Site Inspection and Assessment
A structural engineer or foundation specialist conducts a detailed evaluation to identify the root cause of foundation instability. This includes assessing soil conditions, structural loads, and existing damage to determine the most appropriate underpinning method. Engineers may also use ground-penetrating radar or soil testing to gather more precise data.
2. Obtaining Permits and Preparing the Site
Before work begins, necessary permits must be acquired to ensure compliance with local building codes and regulations. The site is then prepared by clearing obstacles, securing the surrounding area, and implementing safety measures to protect both workers and the structure.

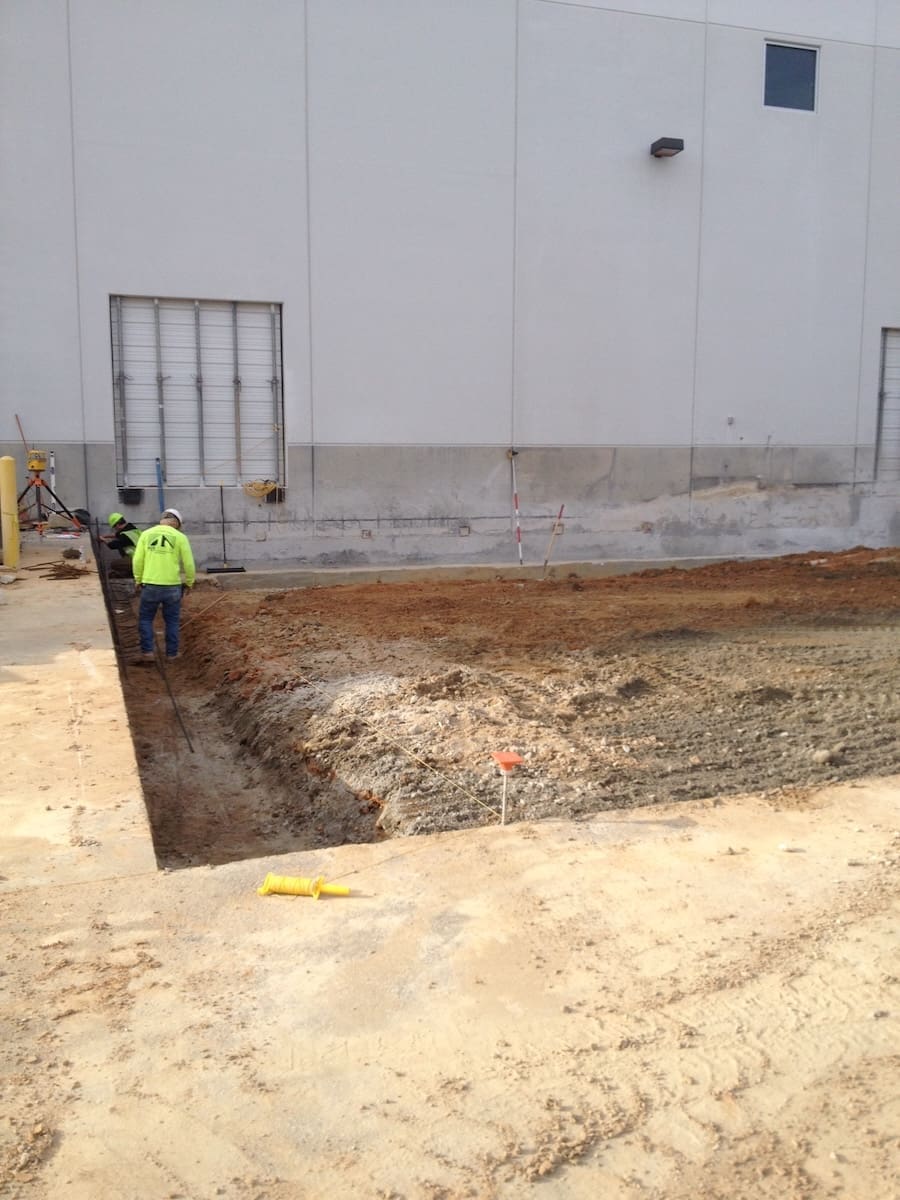

3. Excavation
The underpinning process typically involves excavating small sections beneath the existing foundation in a controlled and staged manner. This prevents sudden shifts that could compromise the building’s stability. The depth and size of the excavation depend on the selected underpinning technique and soil conditions.
4. Concrete Pouring and Reinforcement
Once excavation is complete, concrete is poured into the prepared sections to create a stronger, more stable foundation. In many cases, steel reinforcement bars (rebar) are added to increase durability and load-bearing capacity. For deep foundations, additional techniques like mini-piling may be used to ensure stability.
5. Curing and Load Transfer
The newly poured concrete must cure and harden over time to reach its required strength. This step is crucial, as premature load transfer could weaken the foundation. Once fully set, the structure’s weight is gradually shifted onto the new underpinning, ensuring an even and stable distribution.
6. Waterproofing and Drainage Adjustments
To prevent future water damage, waterproofing measures such as sealants, drainage systems, or moisture barriers may be installed. Proper drainage helps prevent soil erosion and further settlement issues, prolonging the foundation’s lifespan.
7. Backfilling and Site Restoration
After the concrete has been fully set, the excavated areas are backfilled with compacted soil, and the site is restored to its original condition. If necessary, additional structural repairs, such as fixing cracks or leveling floors, are performed to complete the process.
Concrete underpinning is a critical process that reinforces foundations and extends their lifespan. Proper execution by experienced professionals ensures long-term stability and safety for the structure.
Importance of Professional Underpinning
Professional underpinning is essential for ensuring the stability, safety, and longevity of a building’s foundation. Attempting underpinning without expert knowledge can lead to structural failures, increased costs, and potential safety hazards.
Accurate Assessment and Diagnosis
Professionals conduct thorough inspections to determine the root cause of foundation issues. Their expertise ensures the correct underpinning method is selected for long-term effectiveness.
Compliance with Building Codes and Regulations
Licensed underpinning specialists ensure that all work meets local building codes and safety standards. This compliance prevents legal issues and guarantees structural integrity.
Use of High-Quality Materials and Techniques
Professionals have access to industry-grade materials and advanced underpinning techniques. Their experience ensures precise execution, reducing the risk of future foundation problems.
Minimizing Structural Damage and Risks
Improper underpinning can lead to further instability, cracks, and even building collapse. Experts take necessary precautions to protect the structure and surrounding areas during the process.
Cost-Effectiveness and Long-Term Stability
While professional underpinning requires an initial investment, it prevents costly future repairs by providing a durable, lasting foundation solution. Properly executed underpinning enhances property value and safety.
Hiring professionals for underpinning ensures the job is done correctly, safely, and efficiently. Their expertise and adherence to regulations provide peace of mind and long-term protection for the structure.
Summary
Concrete underpinning is a crucial technique for strengthening and stabilizing foundations affected by soil movement, increased structural loads, or environmental changes. It involves extending or reinforcing the foundation to ensure long-term stability, safety, and compliance with modern building standards. Various underpinning methods, such as mass concrete, beam and base, and mini-piled underpinning, address different structural needs.
Understanding when underpinning is necessary, the techniques involved, and the importance of professional expertise helps property owners make informed decisions about foundation repairs. A properly executed underpinning process prevents further damage, enhances structural integrity, and ensures the building remains safe and secure for years to come.
