Concrete expansion joint repair is essential for maintaining the durability and safety of concrete structures. Expansion joints accommodate the natural expansion and contraction of concrete due to temperature fluctuations, preventing uncontrolled cracking and structural damage.
Over time, wear, environmental stress, or improper maintenance can degrade these joints, leading to uneven surfaces, water infiltration, and compromised integrity. Timely repair restores functionality, enhances structural longevity, and minimizes costly damage.
Purpose of Expansion Joints
Expansion joints are crucial components in concrete structures designed to accommodate the natural expansion and contraction of concrete due to temperature variations, moisture changes, and other environmental factors.
Without expansion joints, concrete can develop cracks, leading to structural instability and costly repairs. These joints help maintain the integrity and durability of concrete structures by allowing controlled movement, thus preventing damage.
- Prevention of Cracking: Concrete expands and contracts with temperature fluctuations. Expansion joints absorb these movements, preventing the formation of random cracks.
- Reduction of Stress: External forces such as vehicular traffic, wind, and seismic activity exert stress on concrete structures. Expansion joints help distribute this stress more evenly.
- Enhancement of Longevity: By preventing premature cracking and structural failure, expansion joints contribute to the long-term durability of concrete surfaces.
- Accommodation of Load Movements: Heavy loads, such as those from vehicles on bridges and roads, exert pressure on concrete. Expansion joints allow controlled movement, reducing the risk of structural damage.
- Protection Against Moisture Infiltration: Properly sealed expansion joints prevent water from seeping into the structure, which can cause erosion and weaken the concrete.
Types of Joints in Concrete
Concrete structures incorporate different types of joints to manage stress, prevent cracks, and enhance performance. The main types include:
Expansion Joints:
These joints create a gap between two adjacent concrete sections, allowing for expansion and contraction without causing cracks. They are filled with flexible materials such as rubber, asphalt, or polyurethane to accommodate movement.
Expansion joints are commonly used in bridges, pavements, and large slabs.
Contraction (Control) Joints:
Designed to control the location of cracks, contraction joints are placed at regular intervals to create intentional weak points where cracks can form in a controlled manner. These joints are often saw-cut or pre-molded into the concrete and are used in sidewalks, driveways, and walls.
Construction Joints:
These joints occur where two successive pours of concrete meet. They help bond different sections together while allowing some movement.
Construction joints are often reinforced with dowels or keyways to ensure structural continuity. They are commonly found in large slabs and structural walls.
Isolation Joints:
Also known as separation joints, these are used to isolate one structural element from another, preventing the transmission of stress. They are commonly placed between a building foundation and a sidewalk or between a floor slab and a column.
Cold Joints:
These occur when a delay in pouring concrete causes one section to harden before the next is poured. While not intentionally designed, proper construction techniques and bonding agents help strengthen cold joints to maintain structural integrity.
Consequences of Failing Expansion Joints
When expansion joints fail, they can lead to significant structural and safety issues, increasing repair costs and reducing the lifespan of concrete structures. Some of the major consequences include:
- Cracking and Structural Damage: Without functional expansion joints, concrete cannot accommodate natural movements, leading to the development of cracks that weaken the structure.
- Water Infiltration and Corrosion: Failed expansion joints allow water to seep into the structure, accelerating corrosion of steel reinforcements and causing further deterioration.
- Uneven Surfaces and Safety Hazards: In roads, bridges, and sidewalks, failed expansion joints can lead to uneven surfaces, increasing the risk of accidents and trip hazards.
- Increased Maintenance Costs: If expansion joints are not repaired promptly, the damage can spread, leading to expensive repairs or complete structural failure.
- Reduced Load Capacity: Buildings, bridges, and pavements with damaged expansion joints may not be able to bear the intended load, posing risks to users and infrastructure stability.
Expansion Joint Repair Process
Proper maintenance and repair of expansion joints ensure the longevity and functionality of concrete structures. Expansion joints are essential components in buildings, bridges, roads, and other infrastructure, allowing for thermal expansion, contraction, and movement caused by various factors such as weather conditions, load stress, and seismic activity.
Over time, expansion joints deteriorate due to wear and tear, requiring timely repairs to prevent structural damage and maintain safety. The repair process involves several key steps:
1. Inspection and Assessment
The first step in the repair process is conducting a thorough evaluation of the expansion joints to determine the extent of damage. Engineers and maintenance professionals inspect the joints for visible signs of wear, including cracks, spalling, separation, water infiltration, and missing or deteriorated sealant.
Advanced techniques such as infrared thermography or ground-penetrating radar may be used to assess subsurface conditions. The collected data helps determine the best repair approach based on the severity of the damage and the specific requirements of the structure.
2. Cleaning and Preparation
Before repairing the expansion joint, it is essential to clean and prepare the surface properly. This process includes removing dirt, debris, old sealant, and any loose material using high-pressure water jets, wire brushes, or mechanical grinding tools.
In cases where corrosion is present, rust and contaminants must be thoroughly cleaned to prevent further deterioration. The cleaned surface is then allowed to dry completely, ensuring optimal adhesion of the new filler material.
3. Joint Reconstruction (If Necessary)

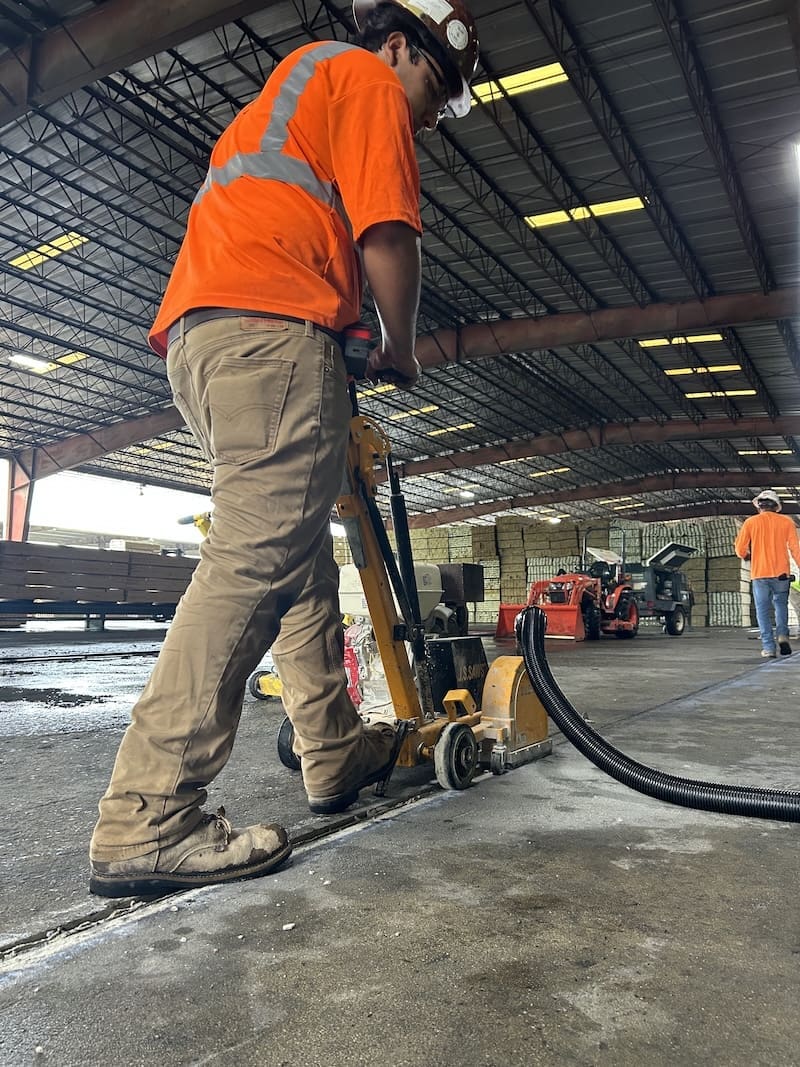

In cases where the damage is severe, joint reconstruction may be required. This involves cutting out the damaged section and replacing it with new materials. The joint width and depth are redefined as per structural specifications.
If reinforcement is needed, additional support materials such as backer rods or expansion foam are installed to enhance stability before the filler material is applied.
4. Filling with Appropriate Materials
Once the joint is properly prepared, an appropriate filler material is selected based on factors such as movement capacity, weather exposure, and load-bearing requirements. Common materials used for expansion joint repairs include:
- Polyurethane Sealants: Provide excellent flexibility and adhesion, suitable for areas with moderate movement.
- Epoxy Resins: Offer high strength and durability, often used in heavy-load applications such as bridges and industrial floors.
- Rubberized Asphalt: Ideal for road expansion joints, providing flexibility to accommodate temperature-induced expansion and contraction.
- Silicone-Based Sealants: Known for their weather resistance and long-lasting performance in extreme environmental conditions.
The selected filler material is carefully applied to the joint, ensuring complete coverage and smooth distribution. Proper tooling and leveling techniques are used to avoid air pockets or uneven application, which could lead to premature failure.
5. Sealing and Finishing
After the joint is filled, a protective sealant is applied over the surface to prevent moisture infiltration, reduce wear, and enhance durability. The sealant ensures the joint remains flexible while withstanding external factors such as traffic load, water exposure, and temperature fluctuations.
Once the sealing process is completed, finishing touches are made to match the surrounding surface, ensuring a uniform and aesthetically pleasing appearance.
6. Curing and Quality Control
The repaired joint is left to cure for the recommended duration based on the material specifications. During this period, quality control checks are performed to verify adhesion, flexibility, and resistance to external forces.
Any necessary adjustments or refinements are made to ensure optimal performance.
7. Regular Maintenance and Monitoring
A proactive maintenance plan is essential to prolong the lifespan of repaired expansion joints. Regular inspections help detect early signs of wear or failure, allowing timely intervention before major damage occurs.
Preventive measures such as routine cleaning, resealing, and reinforcing weak areas can significantly extend the life of expansion joints and prevent costly repairs in the future.
Benefits of Proper Expansion Joint Repair
Expansion joints play a crucial role in preserving the integrity of concrete structures. Proper repair and maintenance ensure durability, safety, and aesthetic appeal while preventing costly damage. Below are the benefits and best practices for effective expansion joint management.
1. Extended Lifespan of Concrete Structures
Expansion joints help concrete structures withstand environmental and mechanical stresses. Without proper repair, cracks and structural weaknesses develop over time.
Regular maintenance ensures that buildings, roads, and bridges remain strong and functional for extended periods, reducing the need for frequent and expensive repairs.
2. Improved Safety for Users
Damaged expansion joints can create hazardous conditions for pedestrians, drivers, and workers. Uneven surfaces or deteriorating joints increase the risk of accidents.
Proper repair and maintenance eliminate these dangers, ensuring safer infrastructure in public and private spaces, including roads, parking decks, and commercial buildings.
3. Enhanced Aesthetic Appeal
The appearance of a structure is an important aspect of its value and usability. Poorly maintained expansion joints can lead to visible cracks and misalignments, diminishing the structure’s appeal.
Regular repairs keep surfaces looking clean and well-kept, improving their overall visual impression.
4. Prevention of Moisture Issues
Water infiltration through damaged expansion joints can cause significant structural problems, including corrosion and mold growth. Moisture damage weakens concrete over time, leading to costly restoration efforts.
Sealing and repairing joints properly prevent these issues, ensuring long-term durability and stability.
Best Practices for Expansion Joint Maintenance
Proper maintenance of expansion joints is crucial for ensuring structural integrity and long-term performance. By implementing routine inspections, timely repairs, and using high-quality materials, property owners can prevent costly damage and enhance the durability of concrete structures.
- Regular Inspections: Routine checks help detect early signs of wear and tear in expansion joints. Identifying minor problems before they escalate prevents severe structural damage. Inspections should be conducted periodically, particularly after harsh weather conditions or heavy structural use.
- Timely Repairs: Delaying repairs can result in increased structural deterioration and higher costs. Addressing minor cracks and loose sealants early prevents major failures. Timely maintenance ensures smooth operations in commercial and industrial settings while prolonging the structure’s service life.
- Use of Quality Materials: Choosing high-quality sealants and fillers is essential for long-lasting expansion joint repairs. Inferior materials deteriorate quickly under environmental stress, leading to frequent maintenance needs. Investing in durable, industry-approved materials enhances resilience, reducing repair frequency and improving overall structural performance.
